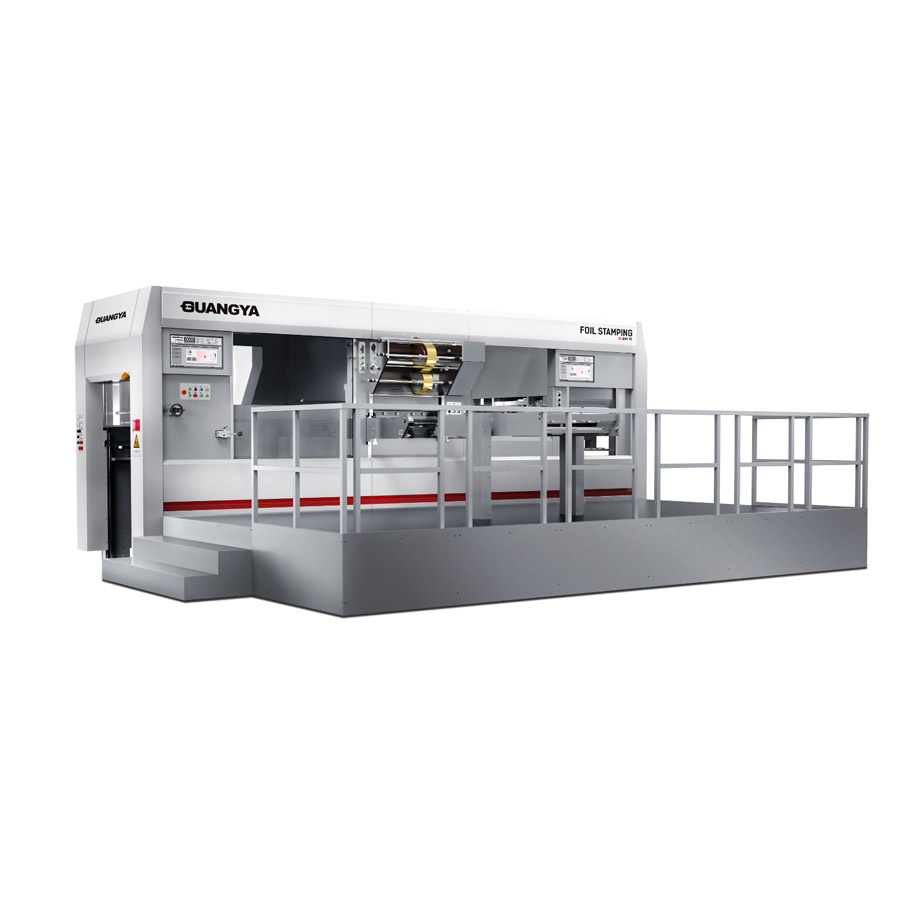

LK 106EMT Automatic Intelligent Foil Stamping And Die Cutting Machine

LK 106EMT Automatic Intelligent Foil Stamping And Die Cutting Machine

Overview Technical parameter Download

PRODUCT FEATURES

LK 106EMT automatic hot stamping and die-cutting machine is the new generation of LK E series. It is developed on the basis of Guangyas years of experience of manufacturing of Automatic Foil Stamping and Die Cutting Machines, and of analysis of similar products by the major producers in the industry from both home and abroad as well as of suggestions from our customers.

This machine is mainly used for die-cutting, indentation, foil stamping and embossing of cartons, cartons and trademarks in the packaging and decoration industry, especially for various high-end and fine printed matters, such as cigarette boxes, wine boxes, gift boxes, and small household appliance boxes. , Cosmetic boxes, etc. All of them can be embossed and indented on this machine to obtain three-dimensional, exquisite and beautiful printed products.

The whole production flow ranging from feeding and die cutting to the delivery are completely automated. It also features automatic detection, malfunction display, high cutting force as well as high registering accuracy. The main drive is equipped with pneumatic clutch and braking device; Furthermore, quite a few photocells and safety devices are located on the machine, which help to minimize injuries to the operator and damage to the machine that might be caused by the emergency.


TECHNICAL PARAMETER

Technical Data

LK106EMT

Suitable Material

Cardboard

80-2000 g/㎡

Corrugated

≤4mm

Plastic Sheet

Acoordingly

Sheet Size

Max. sheet size

1060 X 760 mm

Min. sheet size

400 X 340 mm

Max. die cutting size

1060 X 746 mm

Max. foil stamping size

1060 X 746 mm

Max. embossing size

1060 X 746 mm

Capabilities

Max. die cutting speed

8000 s/h

Max. foil stamping speed

7200 s/h

Max. working pressure

350 t

Working accuracy

± 0.1 mm

Foil Stamping

Adjustable temperature

20 - 200 °C

Heatable zones

12

Foil shafts

3 L, 2 T

Max. foil diameter

220 mm

Pile Height

Max. feeding height

1400 mm

Max. delivery height

1300 mm

Power Supply

Main motor power rate

15 kW

Heating plates power rate

2 kW each zone

Total power rate

65 kW

Air supply

0.6 Mpa, 0.37 M3/min

Machine Dimension

Length

7400 mm

Width

5820 mm

Height

2800 mm

Weight

26 t

*Pile height is with tray

*L stands for longitudinal, H stands for transversal.



MAIN FEATURES

Non-stop Feeder

• Imported Non-stop High-Speed Feeder

• Feeder anti-collision protection

• Feeder electric adjustment

• “SMART” - One button start function, feeder is automatically in position

• Synchronous belt drive to ensure the accuracy of paper feeding

• Left and right movement function of pile tray

• Adjustable paper feeding side blowers

• Pre-stacking paper function, non-stop paper feeding function

Feed Table

Imported belts

The belt is automatically tightened, no need to adjust

Adaptive pressure wheel

Electrical front lays

Push-pull integrated side guides

Imported Antistatic pattern stainless steel

Ultrasonic double sheet detector

SMART” - One button start function, feeding wheel is automatically in position

Host station

Electrically pressure adjustment function

Automatic pressure keeping and pressure reduction function

Imported intermittent mechanism and synchronous belt drive to ensure running accuracy

Presetting Table

Frame and Bottom Plate

Two-way one button locking device for chase and bottom plate

Positioning locking function of frame and host to ensure operation accuracy

Anti-drop protection function for chase and supporting plate

Integrated bottom plate, change job fast

Steel plate imported from Germany

Quick-lock cutting board frame with center positioning

Cutting plate fine adjustment

Host Structure

Host with exclusive and innovative design and is made of specially treated materials

Extremely high strength, toughness and service span

Can withstand greater working pressure and working speed

Foil Stamping Station

Exclusive innovative foil stamping structure

With 3 longitudinal and 2 transverse foil shafts

12 independent temperature zones to avoid interstitial temperature differences

Independent temperature control, energy efficient

Preheating function in temperature zone, save time

Hot stamping memory function,  storing operation recipes, reduce makeready time

Extremely large operating space , reduced labour intensity

Longitudinal foil group has electrical foil feeding system, greatly saving time, improving work efficiency

Air shaft unit , multi-purpose, suit for large areas of aluminium foil

Holographic foil stamping (optional)

Foil Stepping Function

Independently developed, exclusive system

Automatic foil stepping calculation function, foil stepping optimisation function

Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically

Foil Break Detection System

On-screen operation, easy to use

Sensitive detection, reducing waste of aluminum foil and paper

Independent switch

Delivery

Automatic non-stop auxiliary delivery function

Non-stop sampling function

Servo-controled braking brush with motorized adjustment function (length and angle)

Rear jogger fine adjustment device

Tape inseter

Safety light curtain

SMART” - One button start function, delivery is automatically in position

Paper delivery fan system. It can be adjusted individually; infinitely variable speed.

Automatic intermittent lubrication system

Control System

Operating System

24-inch industrial control large-size true color touch capacitive screen

Easy operation and visualized functions

Automatic screen off function, environmental protection and energy saving

Production operation monitoring, data statistics function.

Imported motion control system, Ethercat real-time industrial bus structure

Electrical System

Modular design of electrical system

All imported electrical appliances, quality assurance

Remote module, fast and convenient maintenance

Large-capacity air circulation filter system for electrical cabinets

Air conditioner for electric cabinet (optional)


*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
