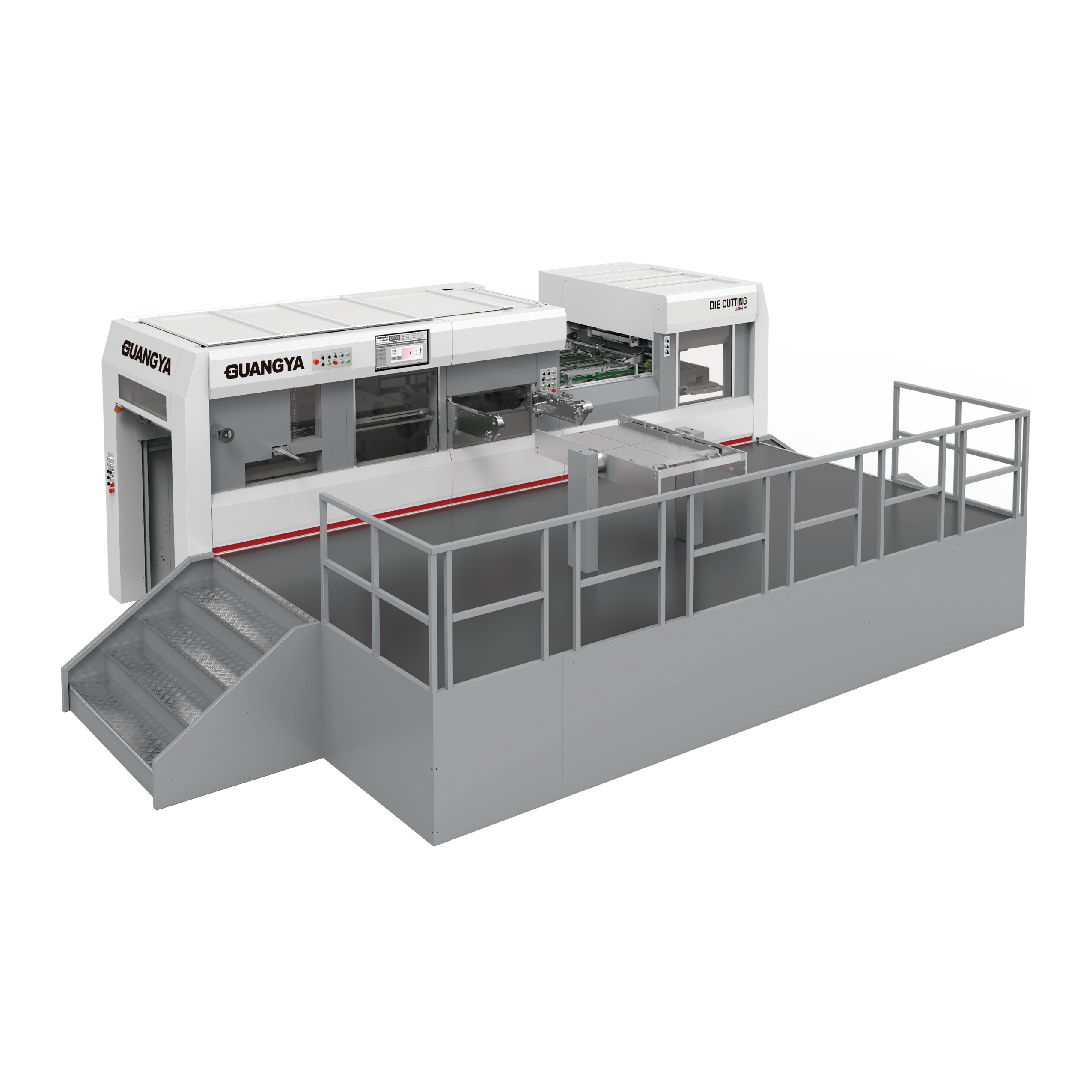

LK 106EMF automatic die-cutting machine with stripping is the new generation of LK E series. It is developed on the basis of Guangyas years of experience of manufacturing of Automatic Foil Stamping and Die Cutting Machines, and of analysis of similar products by the major producers in the industry from both home and abroad as well as of suggestions from our customers.

This machine is mainly used for die-cutting and stripping of cartons, cartons and trademarks in the packaging and decoration industry, especially for various high-end and fine printed matters, such as cigarette boxes, wine boxes, gift boxes, and small household appliance boxes. , Cosmetic boxes, etc. All of them can be embossed and indented on this machine to obtain three-dimensional, exquisite and beautiful printed products.

The whole production flow ranging from feeding and die cutting to the delivery are completely automated. It also features automatic detection, malfunction display, high cutting force as well as high registering accuracy. The main drive is equipped with pneumatic clutch and braking device; Furthermore, quite a few photocells and safety devices are located on the machine, which help to minimize injuries to the operator and damage to the machine that might be caused by the emergency.


Technical Data


Suitable Material


80-2000 g/㎡



Plastic Sheet


Sheet Size

Max. sheet size

1060 X 760 mm

Min. sheet size

400 X 340 mm

Max. die cutting size

1060 X 746 mm

Max. foil stamping size

1060 X 746 mm


Max. die cutting speed

8000 s/h

Max. working pressure

350 t

Working accuracy

± 0.1 mm

Pile Height

Max. feeding height

1800 mm

Max. delivery height

1500 mm

Power Supply

Main motor power rate

15 kW

rotal power rate

20 kW

Air supply

0.6 Mpa, 0.37 M3/min

Machine Dimension


8700 mm


5800 mm


2720 mm


24.8 t

*纸堆高度统一为带托盘。 Pile height is with tray.

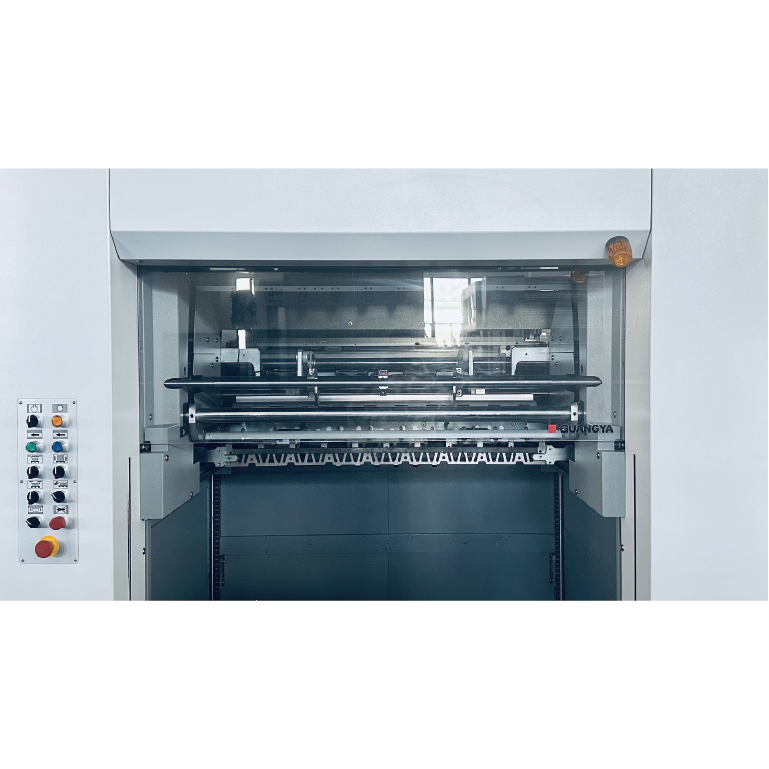

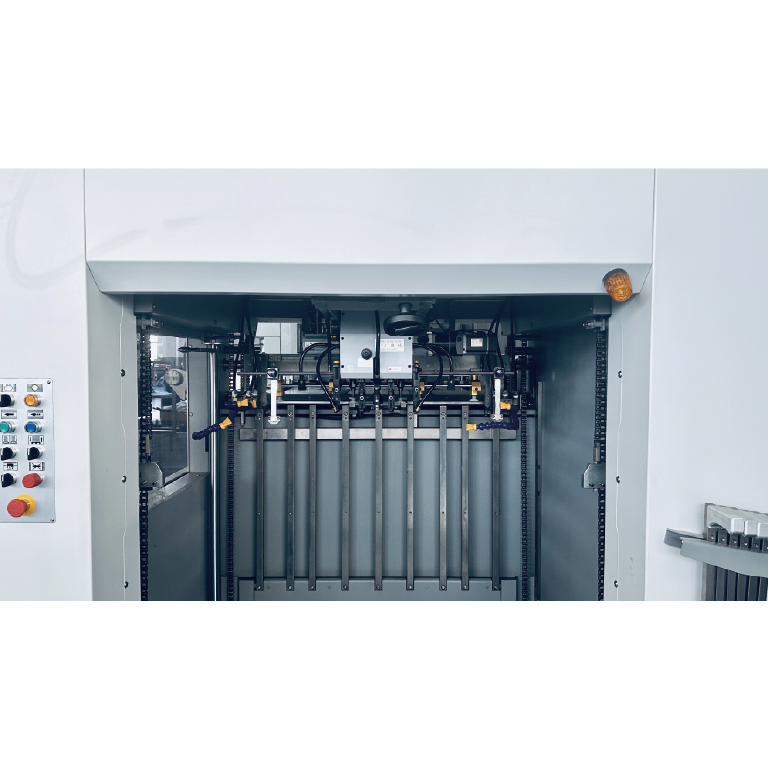

Non-stop Feeder

Imported Non-stop High-Speed Feeder

Feeder anti-collision protection

Feeder electric adjustment

“SMART” - One button start function, feeder is automatically in position

Synchronous belt drive to ensure the accuracy of paper feeding

Left and right movement function of pile tray

Adjustable paper feeding side blowers

Pre-stacking paper function, non-stop paper feeding function

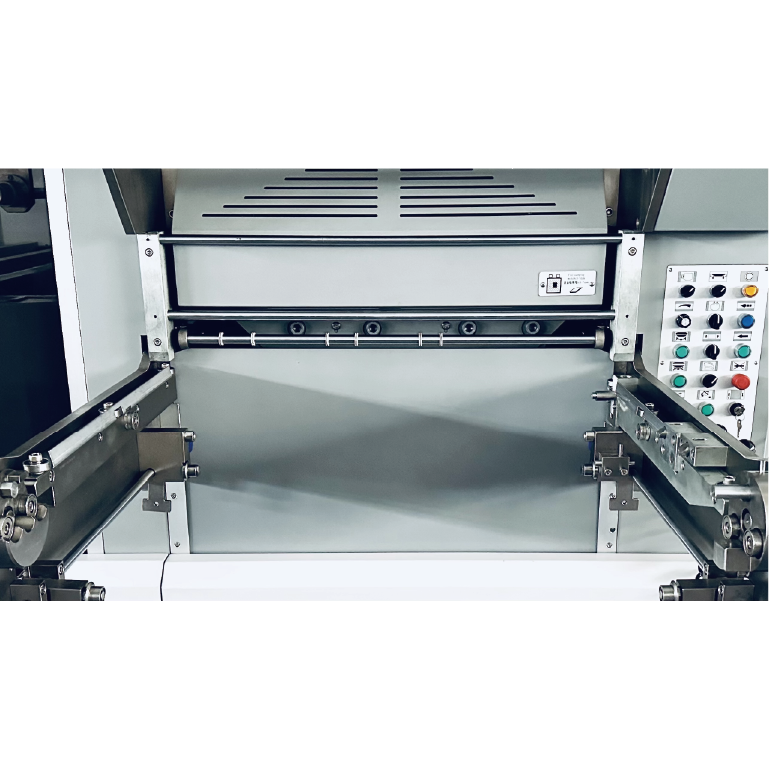

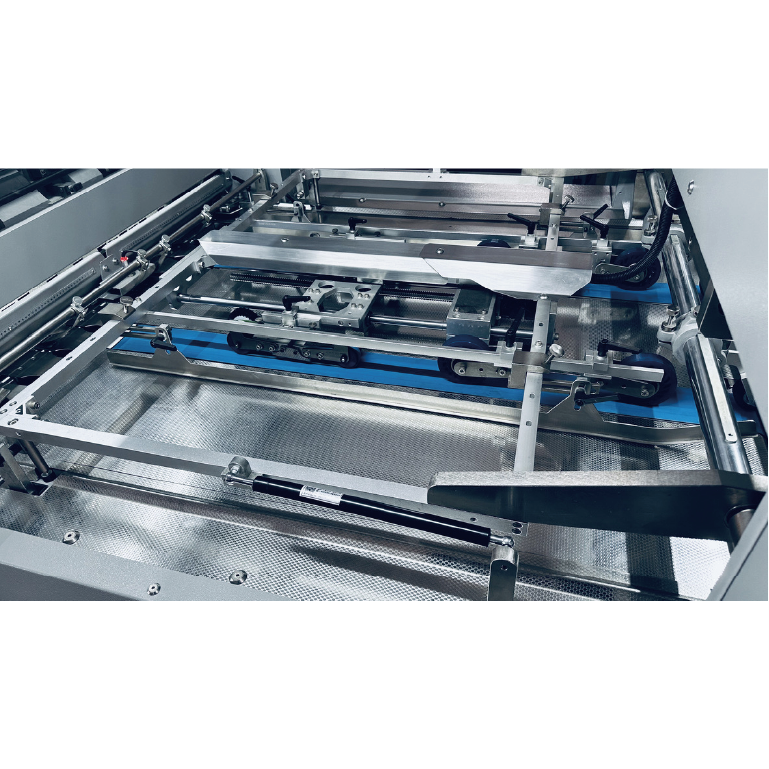

Feed Table

Imported belts

The belt is automatically tightened, no need to adjust

Adaptive pressure wheel

Electrical front lays

Push-pull integrated side guides

Imported Antistatic pattern stainless steel

Ultrasonic double sheet detector

SMART” - One button start function, feeding wheel is automatically in position

Host station

Electrically pressure adjustment function

Automatic pressure keeping and pressure reduction function

Imported intermittent mechanism and synchronous belt drive to ensure running accuracy

Presetting Table

Frame and Bottom Plate

Two-way one button locking device for chase and bottom plate

Positioning locking function of frame and host to ensure operation accuracy

Anti-drop protection function for chase and supporting plate

Integrated bottom plate, change job fast

Steel plate imported from Germany

Quick-lock cutting board frame with center positioning

Cutting plate fine adjustment

Host Structure

Host with exclusive and innovative design and is made of specially treated materials

Extremely high strength, toughness and service span

Can withstand greater working pressure and working speed

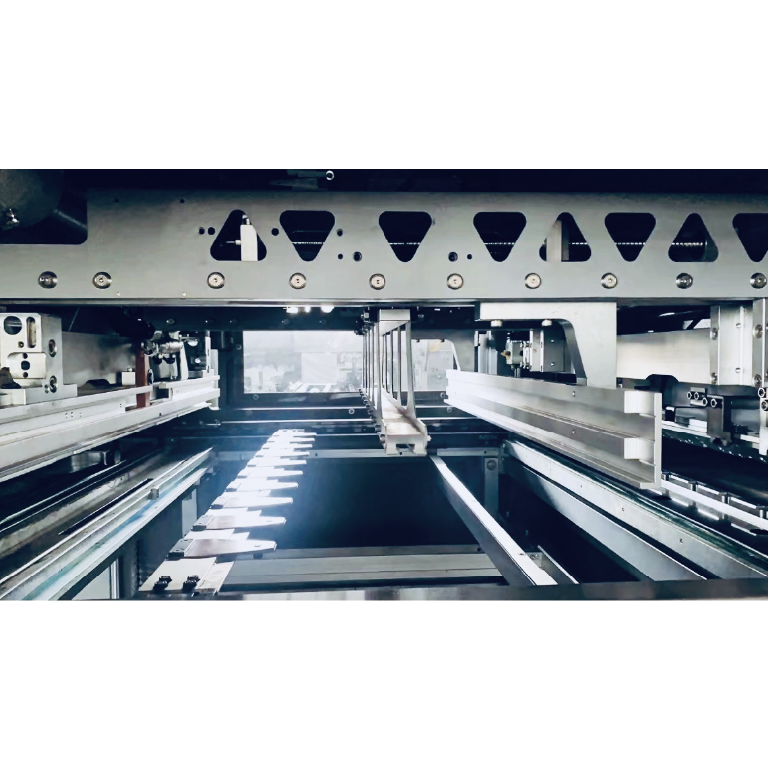

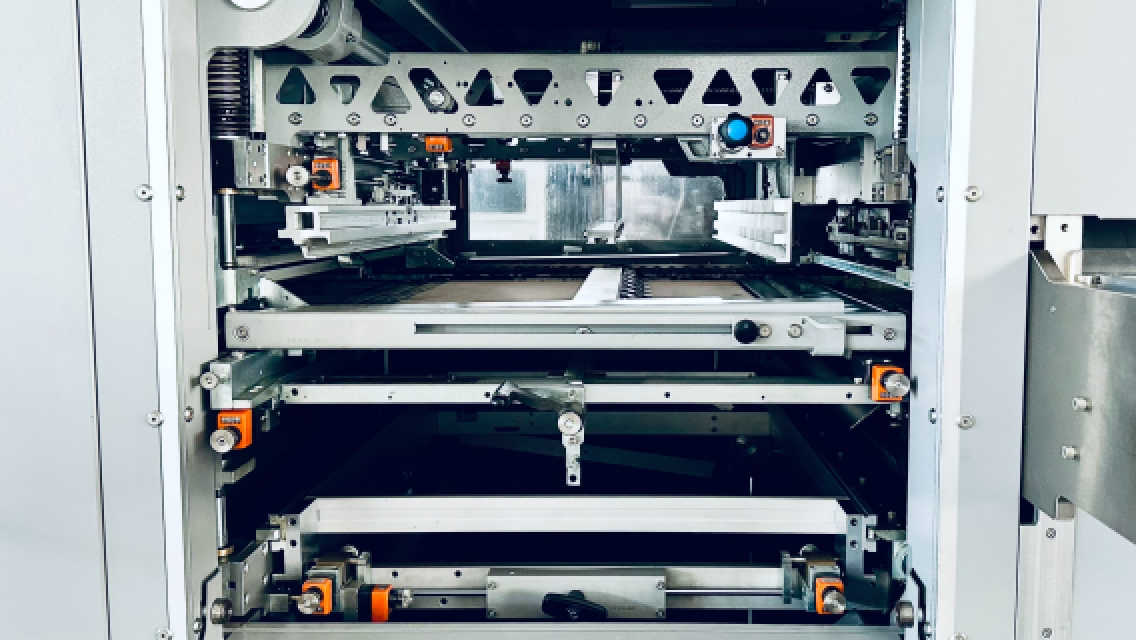

Stripping Station

Stripping part in three frames mechanism

Three frames with center positioning function

Automatic in place function of the upper stripping frame by one key

Upper stripping frame moving up and down pneumatically

Automatic locking function of the upper stripping  frame by one key

Quick locking function of the middle stripping frame

Quick positioning function of the bottom stripping frame


Automatic non-stop auxiliary delivery function

Non-stop sampling function

Servo-controled braking brush with motorized adjustment function (length and angle)

Rear jogger fine adjustment device

Tape inseter

Safety light curtain

SMART” - One button start function, delivery is automatically in position

Paper delivery fan system. It can be adjusted individually; infinitely variable speed.

Automatic intermittent lubrication system

Control System

Operating System

24-inch industrial control large-size true color touch capacitive screen

Easy operation and visualized functions

Automatic screen off function, environmental protection and energy saving

Production operation monitoring, data statistics function.

Imported motion control system, Ethercat real-time industrial bus structure

Electrical System

Modular design of electrical system

All imported electrical appliances, quality assurance

• Remote module, fast and convenient maintenance

• Large-capacity air circulation filter system for electrical cabinets

• Air conditioner for electric cabinet(optional)

We will send the relevant documents to you, so that you can better understand the product information. Please fill in the following information in detail, and we will arrange the staff to contact you in time。
