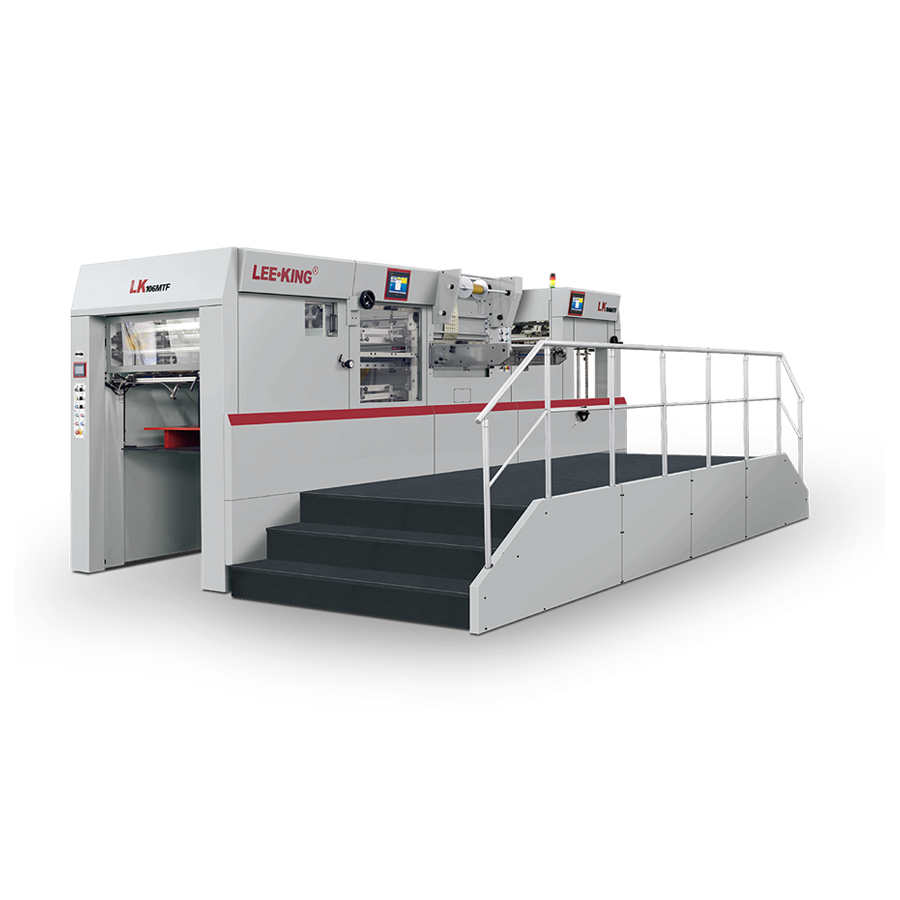

LK106MTF automatic hot stamping and die-cutting machine with stripping is the new generation of LK series. It is developed on the basis of Guangya’s years of experience of manufacturing of Automatic Foil Stamping and Die Cutting Machines, and of analysis of similar products by the major producers in the industry from both home and abroad as well as of suggestions from our customers.
This machine is mainly used for die-cutting, indentation, foil stamping and embossing of cartons, cartons and trademarks in the packaging and decoration industry, especially for various high-end and fine printed matters, such as cigarette boxes, wine boxes, gift boxes, and small household appliance boxes. , Cosmetic boxes, etc. All of them can be embossed and indented on this machine to obtain three-dimensional, exquisite and beautiful printed products.
The whole production flow ranging from feeding and die cutting to the delivery are completely automated. It also features automatic detection, malfunction display, high cutting force as well as high registering accuracy. The main drive is equipped with pneumatic clutch and braking device; Furthermore, quite a few photocells and safety devices are located on the machine, which help to minimize injuries to the operator and damage to the machine that might be caused by the emergency.


Technical Data


Suitable Material


90-2000 g/㎡



Plastic Sheet


Sheet Size

Max. sheet size

1060 X 770 mm

Min. sheet size

450 X 370 mm

Max. die cutting size

1050 X 750 mm

Max. foil stamping size

1050 X 750 mm

Max. embossing size

1050 X 750 mm

Inner Chase size

1100 X 790 mm


Max. die cutting speed

6500 s/h

Max. foil stamping speed

6500 s/h

Max. working pressure

300 t

Working accuracy

± 0.1 mm

Foil Stamping

Adjustable temperature

20 - 200 °C

Heatable zones


Foil shafts


Max. foil diameter

220 mm

Pile Height

Max. feeding height

1350 mm

Max. delivery height

1200 mm

Power Supply

Main motor power rate

15 kW

Heating plates power rate

2 kW each zone

Total power rate

35.6 kW

Air supply

0.6 Mpa, 0.37 M3/min

Machine Dimension


6050 mm


4200 mm


2260 mm


16 t


Non-stop Feeder

• Non-stop High-Speed Feeder

• Strong sheet suction feeder

• Feeder anti-collision protection

• Pre-stacking paper function, non-stop paper feeding function

Feed Table

• Driven by chain movement,with stable and reliable operation

• Imported belts

• Electrical front lays

• Double sheet detection function

• Push-pull integrated side guides

• Imported Antistatic pattern stainless steel

Host station

• Electrically pressure adjustment function

• The complete set of worm gear and worm from Taiwan to improve the service life of key transmission parts of the machine

• Automatic pressure keeping and pressure reduction function

• Imported intermittent mechanism to ensure running accuracy

Frame and Bottom Plate

• One button locking device for chase

• Integrated bottom plate, change job fast

• Steel plate imported from Germany

• Quick-lock cutting board frame with center positioning

Foil Stamping Station

• With 2 transverse foil shafts

• 12 independent temperature zones to avoid interstitial temperature differences

• Independent temperature control, energy efficient

• Preheating function in temperature zone, save time

• Hot stamping memory function, storing operation recipes, reduce makeready time

Foil Stepping Function

• Independently developed, exclusive system

• Automatic foil stepping calculation function, foil stepping optimisation function

• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically

Stripping Station

• Classic efficient stripping structure

• Upper stripping frame lift-up device


• Electrical auxiliary delivery function

• Mechanical adjustable braking brush

• Pneumatic non-stop sampling function

• Tape inseter (optioinal)

Control System

Operating System

• 10.5-inch industrial control color touch screen

• Easy operation and visualized functions

• Automatic screen off function, environmental protection and energy saving

• Production operation monitoring, data statistics function.

Electrical System

• Modular design of electrical system

• Imported electrical appliances, quality assurance

• Remote module, fast and convenient maintenance


We will send the relevant documents to you, so that you can better understand the product information. Please fill in the following information in detail, and we will arrange the staff to contact you in time。
