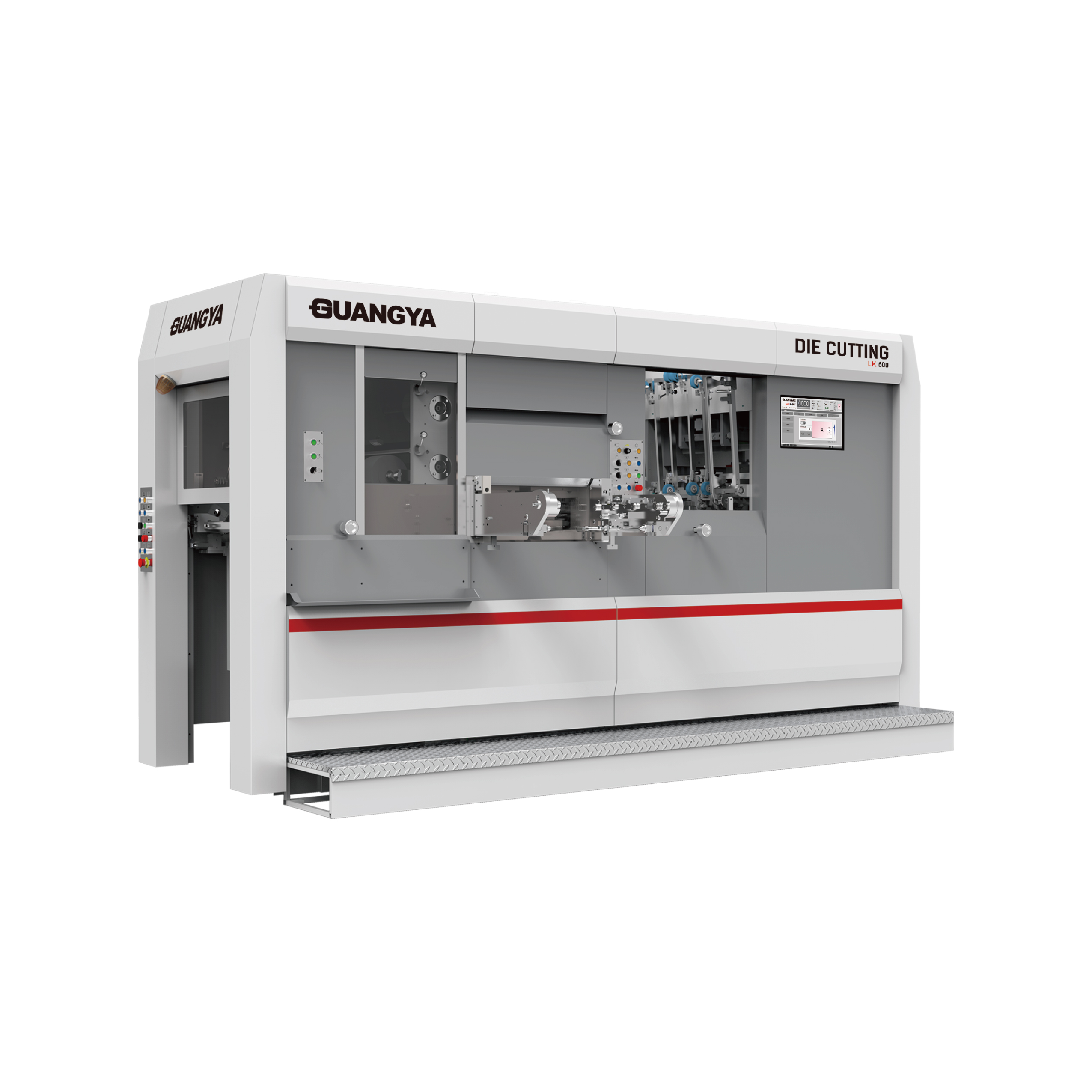

LK 600 Automatic Die Cutting Machine
Auto pressure adjustment system by servo motor; Higher precision and more convenient; Automatic decreasing pressure if no paper, extend mould service life; Non-stop sampling function, improve work efficiency.

LK 600 Automatic Die Cutting Machine

Auto pressure adjustment system by servo motor; Higher precision and more convenient; Automatic decreasing pressure if no paper, extend mould service life; Non-stop sampling function, improve work efficiency.
Overview Technical parameter Download

guangya

 Technical parameter

Max. sheet size

600×450mm

Min. sheet size

290×210mm

Max. paper range

2000g/m²

Min. Paper range

90g/m²

Max. mechanical speed

7000s/h

Max working pressure

200T

Max. feeding pile height

1150mm

Max. delivery pile height

950mm

Main motor power

7.5kw

Total machine power

10.5w

Machine weight

7000kg

Overall machine dimensions

3690×1560×2100mm



Description

1)Compact design concept, fine assembly, good stability, safety, low noise.
2)Worm gear, worm rod, crankshaft drive technology, high die cutting pressure, long service life.
3)Imported high-precision cam indexing unit, high accuracy die-cutting, stable performance, stable running.
4)Using European technology feeder, paper suction adjustable, smooth, accurate, wide paper applicability.
5)Double chases support design, fast exchange, shorten the auxiliary time, improve work efficiency.
6)Die-cutting chase and sole plate structure, user-friendly design, installing and adjusting mold quick and easy.
7)Pneumatic locking chase device, frame fixed more secure, accurate, time-saving.
8)Front lay automatic adjustment, side lay and paper delivering device fine adjustment, paper positioning convenient and accurate.
9)Double sheets, crooked sheets, empty sheets photoelectric level control, to ensure accurate and stable paper, reduce waste.
10)Modular electrical control design, the use of imported international famous brand electrical components to ensure accurate control, good reliability.
11)Touch-screen man-machine interface, running real-time dynamic monitoring display, machine adjustment, troubleshooting convenient and quick.
12)Cycle cooling oil supply system to ensure that the machine moving parts with good lubrication, durable.
13)Regular quantitative automatic oil supply system to ensure that other moving parts of the machine fully lubricated, long service life.
14)Chain and gripper bars are imported adjustable device to ensure that the machine die-cutting accuracy.
  • Max. sheet size
    600×480mm
  • Min. sheet size
    300×210mm
  • Max.paperrange
    1000g/m2
  • Min. Paper range
    120g/m2
  • Max. mechanical speed
    6500s/h
  • Max. working speed
    5500s/h
  • Max working pressure
    150T
  • Max. feeding pile height
    1000mm
  • Max. deliverypile height
    830mm
  • Main motor power
    5.5kw
  • Total machine power
    8.5w
  • Machine weight
    5600kg
  • Overall machine dimensions
    3400×1355×1640mm
