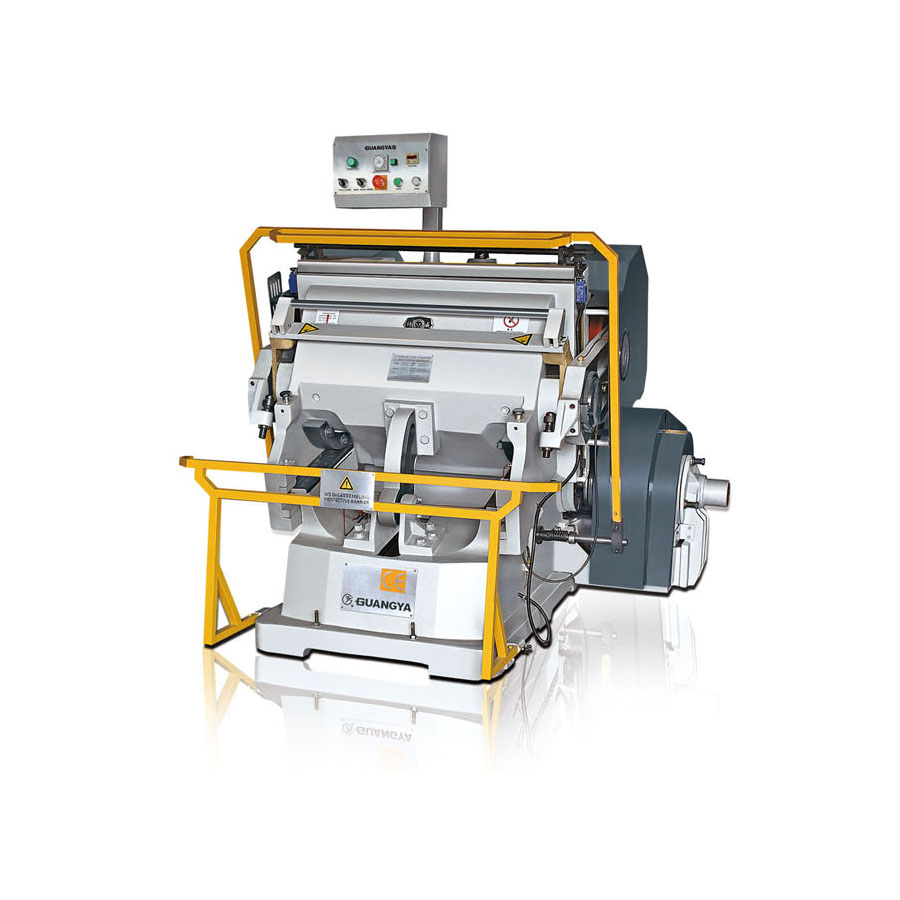

ML 1200 Flat Press Creasing Die Cutting Machine

ML 1200 Flat Press Creasing Die Cutting Machine

ML 1200 Flat Press Creasing Die Cutting Machine
Overview Technical parameter Download

PRODUCT FEATURES

ML series Manual Die Cutting & Creasing Machine is the ideal equipment for die-cutting all kinds of paperboard, leather, plastic, and so on. This machine is the ideal equipment for printing factories.
A manual die-cutting Machine is one kind of basic die-cutting machine for sampling and customizing products. Changing the cutting plate easily, operating easily, and the perfect protection system are the main reason which can win the market. It is also the perfect model for creasing, suitable for many kinds of different-weight cardboard.
Our “SHIWEI” brand ML series Manual Creasing and Die Cutting Machine is widely used in post-press industry, this platen converting paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different product with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.
As a professional manufacturer of hot stamping die-cutting machines with a long history, GUANGYA - SHIWEI has laid the foundation for current mainstream manual foil stamping and die-cutting machines in the market.

1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure and low noise with 2-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standard.
6) Single, continuous operation and opening delay are available, delay range adjustable.
7) Reliable safety system.
8) Adjustable chases with moveable bar.
9) Concentrated automatic lubricating system.


TECHNICAL PARAMETER

Technical Data

ML1200

Inner chase size

1200 X 820 mm

Max. die cutting size

1200 X 820 mm

Working speed

23±2 s/min

Max. rule length

≤32 m

Motor power

5.5 kW

Weight

4800 kg

Overall machine dimensions

2080 X 2050 X 1900 mm

Configuration of chase

Active



MAIN FEATURES

Main Host

• Highest strength casting iron, strong, stable and sturdy

• All the castings are treated with annealing, which will reduce the wear of the machine

• Pressure micro adjustment device, easy for setting up

• Excellent workmanship, quality assurance

• Good appearance and design concept

Safety System

• Inferred sensor to protect the operator's safety, it is very sensitive and responds quickly

• Several sensors can control the machine’s stop, which ensures the safety of the operator.

• Safety door (option)

Lubrication System

• Automatic centralized lubrication system

• The frequency of lubricating can be adjusted

• Easier for maintenance

Control System

Operating System

• Equipped with control panel, easy to operate

• Delay function can control machine open and creasing time.

Electrical System

• Modular design of electrical system

• CE standard electric system

• Imported electrical appliances, quality assurance


*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
