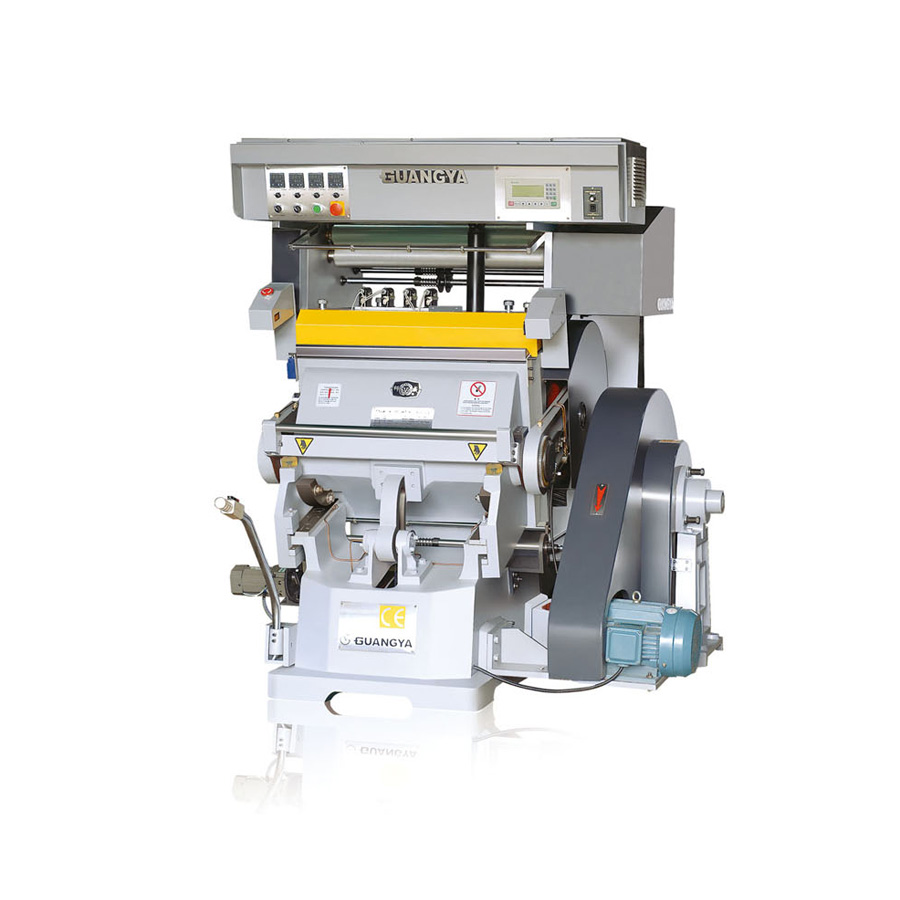

TYMC 750 PLC Control Hot Foil Stamping Machine
TYMC 750 PLC Control Hot Foil Stamping Machine

TYMC 750 PLC Control Hot Foil Stamping Machine

TYMC 750 PLC Control Hot Foil Stamping Machine
Overview Technical parameter Download

PRODUCT FEATURES

TYMC series Manual PLC Controlled Hot Foil Stamping & Die Cutting Machine is the ideal equipment for stamping and die-cutting all kinds of paperboard, leather, plastic, and so on. This machine is the ideal equipment for printing factories.
A manual Foil Stamping Machine is one kind of basic stamping machine for sampling and customizing products. Increasing and decreasing temperature accurately, changing the stamping plate easily, operating easily and perfect protection system are the main reason which can win the market. it is also the perfect model for embossing and creasing, suitable for many kinds of different-weight cardboard.
Our “SHIWEI” brand TYMC series Manual Foil Stamping and Die Cutting Machine is widely used in the post-press industry, this platen converts paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different products with high efficiency, such as food/beverage/ personal care/ home& office/ industrial package and so on.
As a professional manufacturer of hot stamping die-cutting machines with a long history, GUANGYA - SHIWEI has laid the foundation for current mainstream manual foil stamping and die-cutting machines in the market.

1. The TYMC series hot foil stamping machine got function of hot foil stamping, register and embossing in one pass and also could do die cutting process.
2.It also equipped LED / Touch Screen for quick operation.
3.By using imported brand PLC and 2 / 3 sets of independent stepping motor control, the foil jogging and adjusting easily.
4.There are 4 to 5 individual temperature controllers on the machine, it makes Uniform heating, fast heating, power saving, automatic temperature control and display function in each zone to improve hot stamping quality.
5.this machine equipped world famous brand electric parts in the key point which make the machine stable working and long-life term.
6.the fully automatic lubrication system makes the machine working more stable and save the time to add lubricating oil.
7.The body is made of high-grade cast iron, which is durable and has strong compressive and tensile strength, which can meet various complicated production requirements.


TECHNICAL PARAMETER

Technical Data

TYMC750

Inner chase size

750 X 520 mm

Max. die cutting size

750 X 520 mm

Groups of foil feeding

2

Max. foil feeding length

520 mm

Foil stepping scope

0-99

zones of heating plate

4

Heating plate power rate

8 kW

Main motor power

2.2 kW

Total power

10.2 kW

Working speed

28±2 s/min

Weight

2300 kg

Overall machine dimensions

1540 X 1660 X 1970 mm



MAIN FEATURES

Main Host

• Highest strength casting iron, strong, stable and sturdy

• All the castings are treated with annealing, which will reduce the wear of the machine

• Pressure micro adjustment device, easy for setting up

• Excellent workmanship, quality assurance

• Good appearance and design concept

Foil System

• 3 foil shafts, easy to set up

• 5 heating zones, individual controlled, save energy

• Constantly temperature control, real-time temperature display, which • ensures high product quality

• Up to 99 foil stepping scope, which can solve different foil die patterns and save foils

• Controlled by imported PLC system, reliable and faster in operation

Safety System

• Inferred sensor to protect the operator's safety, it is very sensitive and responds quickly

• Several sensors can control the machine’s stop, which ensures the safety of the operator.

• Safety door (option)

Lubrication System

• Automatic centralized lubrication system

• The frequency of lubricating can be adjusted

• Easier for maintenance

Control System

Operating System

• Equipped with control panel, easy to operate

• Delay function can control machine open and creasing time.


Electrical System

• Modular design of electrical system

• CE standard electric system

• Imported electrical appliances, quality assurance

Safety Door Lock System


• The safety door lock protects the personal safety of the operator, once the electrical box door is opened, the power supply will be cut off immediately


*FOR MORE DETAILSPLEASE ASK YOUR SALES CONSULTANT



  • Max. effective plate area
    750×520mm
  • Max. Stamping Size
    750×520mm
  • Groups of Foil Feeding
    2
  • Max foil feeding length
    520mm
  • Leapfroging Scope
    0-99
  • Individual Zones of Heating Plate
    4
  • Power of Heating Plate
    8kw
  • Main Motor Power
    2.2kw 6pole
  • Total Power
    10.2kw
  • Speed
    28±2 sheets/min
  • Gross weight of machine
    2300kg
  • Overall machine dimensions
    1540×1660×1970mm
