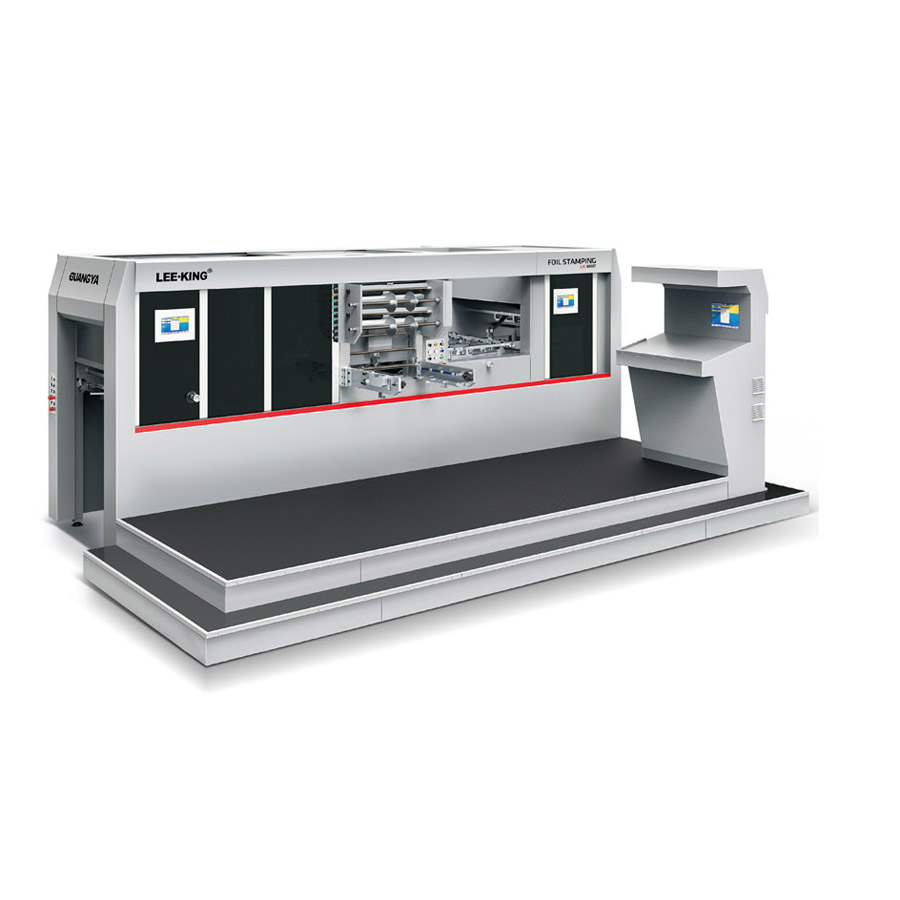

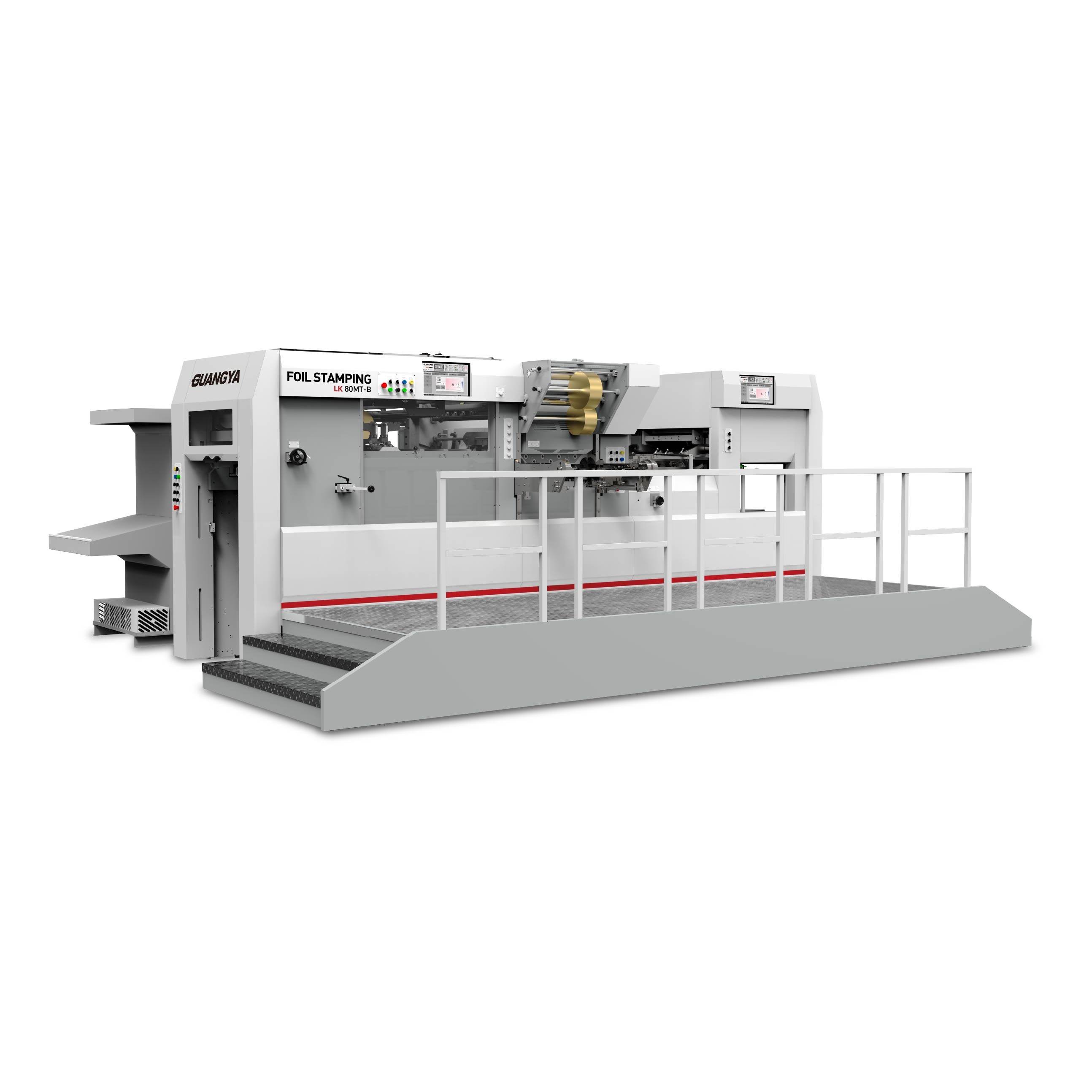

LK 80MT Automatic Foil Stamping And Die Cutting Machine

LK 80MT Automatic Foil Stamping And Die Cutting Machine

This machine is mainly used for foil stamping, die cutting, creasing and embossing etc., to get the stereoscopic impression and beautiful product.
Overview Technical parameter Download

PRODUCT FEATURES

LK 80MT Automatic Foil stamping & Die Cutting Machine is the new generation of LK series. It is developed on the basis of Guangya’s years of experience of manufacturing of Automatic Foil Stamping and Die Cutting Machines, and of analysis of similar products by the major producers in the industry from both home and abroad as well as of suggestions from our customers.

This machine is mainly used for die-cutting, indentation, foil stamping and embossing of cartons, cartons and trademarks in the packaging and decoration industry, especially for various high-end and fine printed matters, such as cigarette boxes, wine boxes, gift boxes, and small household appliance boxes, Cosmetic boxes, etc. All of them can be embossed and indented on this machine to obtain three-dimensional, exquisite and beautiful printed products.


*Flexible production of short and small batches.

*Quick-lock version frame device, shorten the debugging time by 50%.

*With center alignment function from conveying to die cutting.

*Automatic pressure adjustment system by servo motor, higher precision and more convenient.

*Automatically decrease pressure if no paper, extend mould service life.

*Non-stop sampling function, improve work efficiency.


TECHNICAL PARAMETER

Technical Data

LK80MT

Suitable Material

Cardboard

90-2000 g/㎡

Corrugated

≤4mm

Plastic Sheet

Acoordingly

Sheet Size

Max. sheet size

800 X 620 mm

Min. sheet size

360 X 290 mm

Max. die cutting size

790 X 610 mm

Max. foil stamping size

790 X 610 mm

Max. embossing size

790 X 610 mm

Inner Chase size

880 X 628 mm

Capabilities

Max. die cutting speed

8000 s/h

Max. foil stamping speed

6500 s/h

Max. working pressure

200 t

Working accuracy

± 0.1 mm

Foil Stamping

Adjustable temperature

20 - 200 °C

Heatable zones

10

Foil shafts

3L 2T

Max. foil diameter

220 mm

Pile Height

Max. feeding height

1280 mm

Max. delivery height

1070 mm

Power Supply

Main motor power rate

7.5 kW

Heating plates power rate

2 kW each zone

Total power rate

38 kW

Air supply

0.6 Mpa, 0.37 M3/min

Machine Dimension

Length

5380 mm

Width

3935 mm

Height

2445 mm

Weight

17 t

*Pile height is with tray.

*L stands for longitudinal, T stands for transversal.



MAIN FEATURES

Non-stop Feeder

• Non-stop High-Speed Feeder

• Feeder anti-collision protection

• Pile tray side guide can be adjust electrically

• Pre-stacking paper function, non-stop paper feeding function

Feed Table

• Imported belts

• The belt is automatically tightened, no need to adjust

• Electrical front lays

• Push-pull integrated side guides

• Imported Antistatic pattern stainless steel

Host station

• Electrically pressure adjustment function

• Automatic pressure keeping and pressure reduction function

• Presetting Table

Frame and Bottom Plate

• One button locking device for chase

• Integrated bottom plate, change job fast

• Steel plate imported from Germany

• Quick-lock cutting board frame with center positioning

Foil Stamping Station

• With 3 longitudinal and 2 transverse foil shafts

• 10 independent temperature zones to avoid interstitial temperature differences

• Independent temperature control, energy efficient

• Preheating function in temperature zone, save time

Delivery

• Auxiliary delivery function

• Mechanical braking brush

• Pneumatic non-stop sampling function

• Tape inseter (optioinal)

• Safety light curtain (optioinal)

Control System

Operating System

• Easy operation and visualized functions

• Automatic screen off function, environmental protection and energy saving

• Production operation monitoring, data statistics function.

Electrical System

• Modular design of electrical system

• Imported electrical appliances, quality assurance

• Remote module, fast and convenient maintenance


*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
