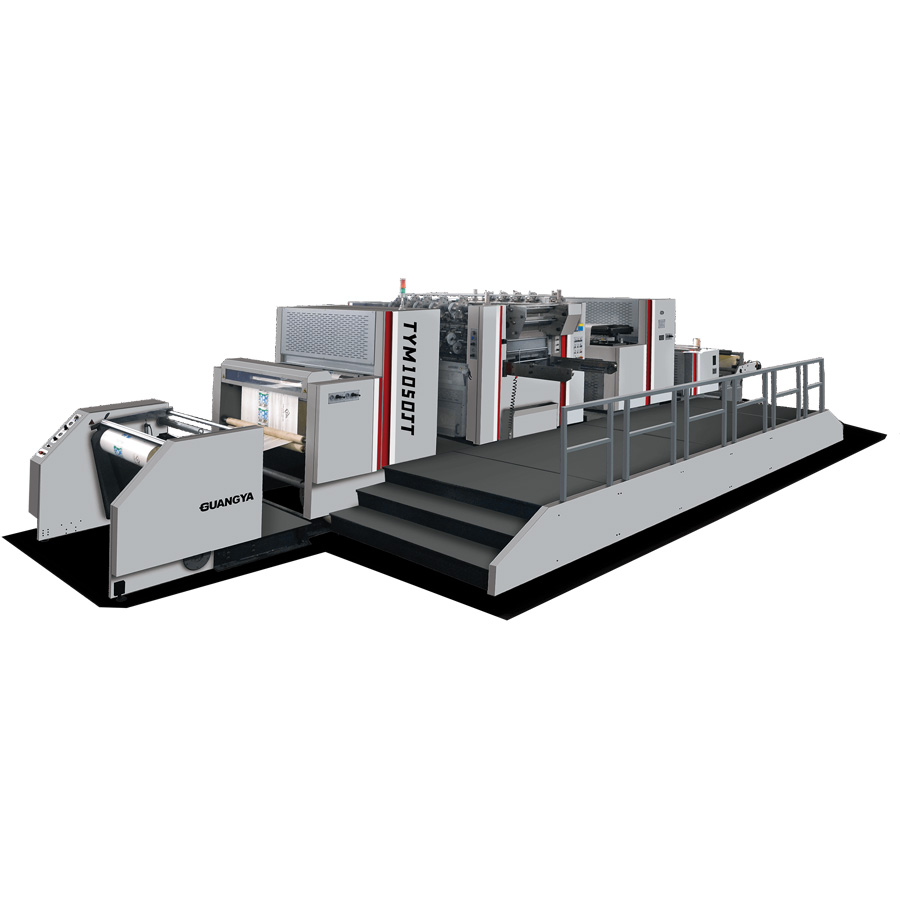

TYM 1050JT Automatic Web-Fed Hot Foil Stamping Machine is designed as the new generation product; It is used for automatic stamping roll material that after the printing, laminating. It is suitable for the production of paper box, paper cup, surround-bidding label, card paper pressing convex, portable paper bag, paper cover and so on.
The main machine and frame adopt the advanced resin sand technical, which ensures machine be more stable. The main components are controlled by the Japan Mitsubishi PLC. The main motor is controlled by AC frequency conversion speed regulator; The main transmission system is equipped by air clutch brake equipment, which makes the machine running steadily.
The machine equipment adopts high precision color photo-electrical automatic trace detection, servo motor automatic locating system. Material automatic loading, equipping --- feeder automatic correct equipment. It has advantages of easy length adjustment, high precision locating, stable feeding, even tension, compact structure, high automatic, easy operation, stable property and so on.
|
Technical Data |
TYM1050JT |
|
|
Suitable Material |
Cardboard |
80-400 g/㎡ |
|
Non-woven Fabrics |
/ |
|
|
Plastic Sheet |
Acoordingly |
|
|
Sheet Size |
Max. roll diameter |
1400 mm |
|
Max. feeding length |
750 mm |
|
|
Max. sheet size |
1050 X 750 mm |
|
|
Capabilities |
Max. working speed |
8000 s/h |
|
Max. working pressure |
350 t |
|
|
Working accuracy |
± 0.1 mm |
|
|
Foil Stamping |
Adjustable temperature |
20 - 200 °C |
|
Heatable zones |
12 |
|
|
Foil shafts |
3L 2T |
|
|
Max. foil diameter |
220 mm |
|
|
Power Supply |
Main motor power rate |
11 kW |
|
Heating plates power rate |
2 kW each |
|
|
Total power rate |
66 kW |
|
|
Air supply |
0.6 Mpa, 0.37 M3/min |
|
|
Machine Dimension |
Length |
11455 mm |
|
Width |
3865 mm |
|
|
Height |
2300 mm |
|
|
Weight |
18 t |
|
Feeding Station
• Paper load hydraulic
• Pneumatic shaft
• Imported air clutch to ensure brake sensitive when machine running at high or low speed
• Ultrasonic detection system
• Double brake system to ensure smooth feeding
• With deviation correction function, ensure working accuracy
• With material connecting function, highly improves work efficiency.
Deviation Correction System
• 2nd high-precision deviation correction greatly guarantees the operation accuracy
• Rolls storage and tension guarantee function
Host Station
• Electrically pressure adjustment function
• One button locking device for chase
Foil Stamping
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Easy operation, reduced labour intensity
• Hologram Stamping (optional)
Foil Stepping Function
• Independently developed, exclusive system
• Automatic foil stepping calculation function, foil stepping optimization function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically
Delivery
• Paper unload hydraulic
• Pneumatic shaft
• Servo rewinding
• Ultrasonic detection system
• Rolls pressing function
Control System
• Industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical Part
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
• Air circulation filter system for electrical cabinets
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
