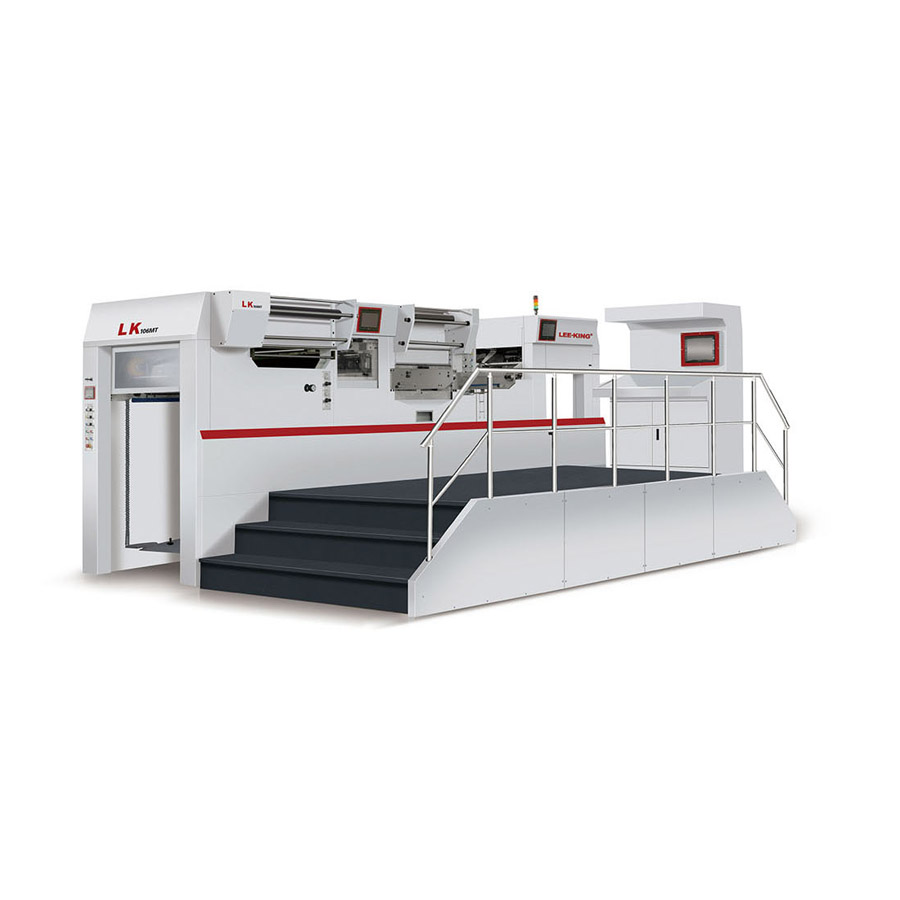

LK 106MT automatic hot stamping and die-cutting machine is the new generation of LK series. It is developed on the basis of Guangya’s years of experience of manufacturing of Automatic Foil Stamping and Die Cutting Machines, and of analysis of similar products by the major producers in the industry from both home and abroad as well as of suggestions from our customers.
This machine is mainly used for die-cutting, indentation, foil stamping and embossing of cartons, cartons and trademarks in the packaging and decoration industry, especially for various high-end and fine printed matters, such as cigarette boxes, wine boxes, gift boxes, and small household appliance boxes. , Cosmetic boxes, etc. All of them can be embossed and indented on this machine to obtain three-dimensional, exquisite and beautiful printed products.
The whole production flow ranging from feeding and die cutting to the delivery are completely automated. It also features automatic detection, malfunction display, high cutting force as well as high registering accuracy. The main drive is equipped with pneumatic clutch and braking device; Furthermore, quite a few photocells and safety devices are located on the machine, which help to minimize injuries to the operator and damage to the machine that might be caused by the emergency.
Technical Data |
LK106MT |
|
Suitable Material |
Cardboard |
90-2000 g/㎡ |
Corrugated |
≤4mm |
|
Plastic Sheet |
Acoordingly |
|
Sheet Size |
Max. sheet size |
1060 X 770 mm |
Min. sheet size |
450 X 370 mm |
|
Max. die cutting size |
1050 X 750 mm |
|
Max. foil stamping size |
1050 X 750 mm |
|
Max. embossing size |
1050 X 750 mm |
|
Inner Chase size |
1100 X 790 mm |
|
Capabilities |
Max. die cutting speed |
7500 s/h |
Max. foil stamping speed |
6500 s/h |
|
Max. working pressure |
300 t |
|
Working accuracy |
± 0.1 mm |
|
Foil Stamping |
Adjustable temperature |
20 - 200 °C |
Heatable zones |
12 |
|
Foil shafts |
3L 2T |
|
Max. foil diameter |
220 mm |
|
Pile Height |
Max. feeding height |
1350 mm |
Max. delivery height |
1200 mm |
|
Power Supply |
Main motor power rate |
15 kW |
Heating plates power rate |
2 kW each zone |
|
Total power rate |
46 kW |
|
Air supply |
0.6 Mpa, 0.37 M3/min |
|
Machine Dimension |
Length |
6050 mm |
Width |
4200 mm |
|
Height |
2260 mm |
|
Weight |
17 t |
|
*Pile height is with tray. |
||
*L stands for longitudinal, H stands for transversal. |
Non-stop Feeder
• Non-stop High-Speed Feeder
• Strong sheet suction feeder
• Feeder anti-collision protection
• Pre-stacking paper function, non-stop paper feeding function
Feed Table
• Driven by chain movement,with stable and reliable operation
• Imported belts
• Electrical front lays
• Double sheet detection function
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
Host station
• Electrically pressure adjustment function
• The complete set of worm gear and worm from Taiwan to improve the service life of key transmission parts of the machine
• Automatic pressure keeping and pressure reduction function
• Imported intermittent mechanism to ensure running accuracy
Frame and Bottom Plate
• One button locking device for chase
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
Foil Stamping Station
• With 2 transverse foil shafts
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Hot stamping memory function, storing operation recipes, reduce makeready time
Foil Stepping Function
• Independently developed, exclusive system
• Automatic foil stepping calculation function, foil stepping optimisation function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically
Delivery
• Electrical auxiliary delivery function
• Mechanical adjustable braking brush
• Pneumatic non-stop sampling function
• Tape inseter (optioinal)
Control System
Operating System
• 10.5-inch industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical System
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
