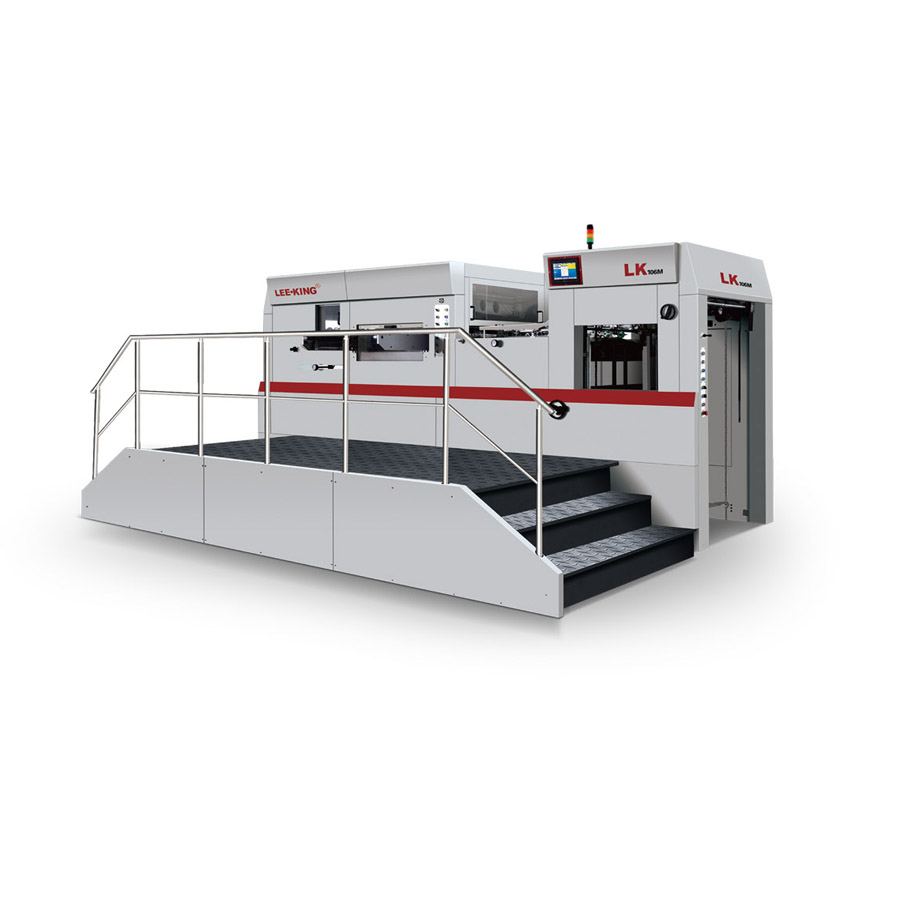

LK 106M Automatic Die Cutting Machine
The machine is mainly used in the packaging and decorating industry, cartons, cardboard boxes, trademarks die-cutting, creasing and cold embossing etc.

LK 106M Automatic Die Cutting Machine

The machine is mainly used in the packaging and decorating industry, cartons, cardboard boxes, trademarks die-cutting, creasing and cold embossing etc.
Overview Technical parameter Download

guangya

Technical parameter

Max. sheet size

1060×770mm

Min sheet size

450×370mm

Max. die cutting size

1050×750mm

Gripper margin

8-17mm

Paper range

90-2000g/m2(cardboard)0.1-2mm(cardboard)≤4mm(corrugated)

Max. cutting force

300T

Max. working speed

7500s/h

Max. delivery pile height

1200mm

Max. feeding pile height

1350mm

Main motor power

11kw

Power rating

17.6kw

Machine weight

16000kg

Air requirement

0.6Mpa,>0.37m3/min

Overall machine dimension

5050×4200×2260mm


Description

1)Compact design concept, fine assembly, good stability, safety, low noise.
2)Worm gear, worm rod, crankshaft drive technology, high die cutting pressure, long service life.
3)Imported high-precision cam indexing unit, high accuracy die-cutting, stable performance, stable running.
4)Using European technology feeder, paper suction adjustable, smooth, accurate, wide paper applicability.
5)Non-stop feeding, pre-coding paper pile and auxiliary paper delivery device, shorten the auxiliary time, improve work efficiency.
6)Die-cutting chase and sole plate structure, user-friendly design, installing and adjusting mold quick and easy.
7)Pneumatic locking chase device, frame fixed more secure, accurate, time-saving.
8)Front lay, side lay and paper transferring device micro adjustment, paper positioning convenient and accurate.
9)Double sheets, crooked sheets, empty sheets photoelectric level control, to ensure accurate and stable paper, reduce waste.
10)Modular electrical control design, the use of imported international famous brand electrical components to ensure accurate control, good reliability.
11)Touch-screen man-machine interface, running real-time dynamic monitoring display, machine adjustment, troubleshooting convenient and quick.
12)Cycle cooling oil supply system to ensure that the machine moving parts with good lubrication, durable.
13)Regular quantitative automatic oil supply system to ensure that other moving parts of the machine fully lubricated, long service life.
14)Chain and gripper bars are imported adjustable device to ensure that the machine die-cutting accuracy.

Easily Respond to Large Batches of Continuous Jobs
The speed is increased by 1000 pieces per hour, and the annual output value is increased by 6 million pieces (based on the production rate of 7000 pieces/hour, the average machine is 6,000 pieces/hour, calculated on the basis of 300 working days per year, effective working time of 20 hours per day).

  • Max. sheet size
    1060x770 mm
  • Min. sheet size
    400x370 mm
  • Max.die cutting size
    1050x750 mm
  • Gripper margin
    8-17 mm
  • Paper range
    90-2000g/m2(cardboard)0.1-2mm(cardboard)≤4mm(corrugated)
  • Maximum cutting force
    300T
  • Max. working speed
    7500 s/h
  • Max. working pressure
    300T
  • Max. working speed
    7500 s/h
  • Max. delivery pile height
    1200 mm
  • Max. feeding pile height
    1350 mm
  • Main motor power
    11Kw
  • Power rating
    17.6kw
  • Machine weight
    16000kg
  • Overall machine dimensions
    5050×4200×2260mm
  • Air supply
    0.6Mpa, >0.37m3/min
