Technical parameter

Description

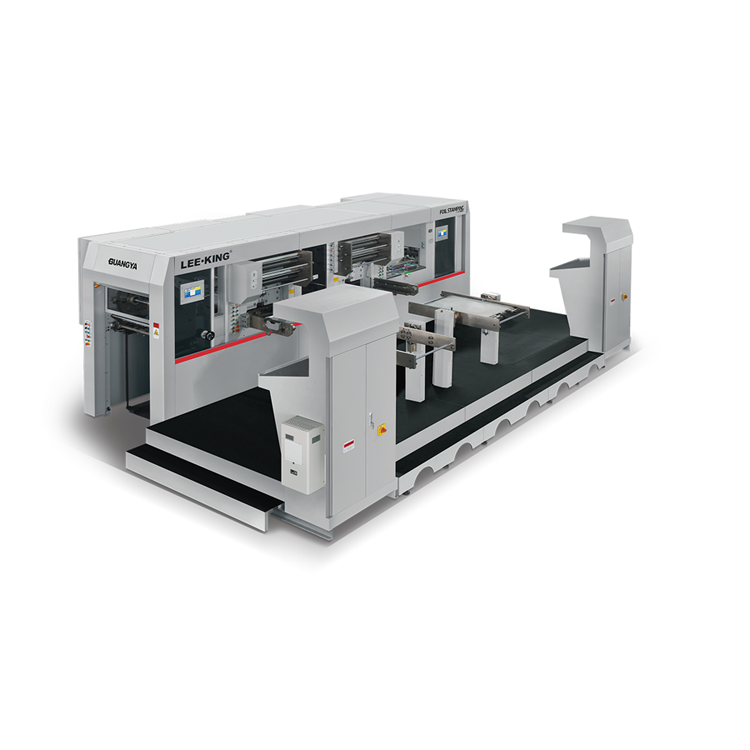

1)Double-station design, one passing paper can be completed foil stamping, embossing debossing, die cutting any two processes, reducing time and saving labor costs.
2)Small space requirement, process flow time is short, greatly improve production efficiency, rapid completion of production targets.
3)Compact design concept, fine assembly, good stability, safety, low noise.
4)Worm gear, worm rod, crankshaft drive technology, die cutting high pressure, long service life.
5)Imported high-precision cam indexing unit, die-cutting high precision, stable performance, stable running.
6)European technology feeding head, sucking paper adjustable, stable, accurate, paper various applicability.
7)Non-stop feeding, pre-coding paper pile and auxiliary paper delivery device, shorten the auxiliary time, improve work efficiency.
8)Die-cutting chase and sole plate structure, user-friendly design, installing and adjusting mold quick and easy.
9)Pneumatic locking chase device, frame fixed more secure, accurate, timesaving.
10)Front lay automatic adjustment, side lay and paper delivering device fine adjustment, paper positioning convenient and accurate.
11)Double sheets, crooked sheets, empty sheets photoelectric level control, to ensure accurate and stable paper, reduce waste.
12)Modular electrical control design, the use of imported international famous brand electrical components to ensure accurate control, good reliability.
13)Touch-screen man-machine interface, running real-time dynamic monitoring display, machine adjustment, troubleshooting convenient and quick.
14)Circulation cooling oil supply system to ensure that the machine moving parts with good lubrication, durable.
15)Regular quantitative automatic oil supply system to ensure that other moving parts of the machine fully lubricated, long service life.
16)Chain and gripper bars are imported adjustable device to ensure that the machine die-cutting accuracy.
17) the design of two separate console table, so that operator could be more convenient and efficient to control the system.
17)Pre-heating system is more convenient, user-friendly, save time.
18)Automatic pressure regulator system controlled by the servo, more accurate and convenient pressure adjusting.
19)No paper automatically reducing pressure, to extend the mold life.
20)Non-stop sampling function, improve production efficiency.

• Max. sheet size
  800x620 mm
• Min. sheet size
  360×290mm
• Max.die cutting size
  790×610mm
• Inner chase size
  880×628mm
• Max. Mechanical speed
  7500s/h
• Max. Stamping speed
  6500s/h
• Paper range
  90-2000g/m2(cardboard)
• Press 1 foil pulling shafts
  Longitudinal 3,transversal 2
• Press 2 foil pulling shafts
  Transversal 2
• Max. Foil diameter
  ￠220mm
• Press 1 zones individually heated
  10 zones (each zone can be adjusted independently, maximum 200℃)
• Press 2 zones individually heated
  10 zones (each zone can be adjusted independently, maximum 200℃)
• Cutting accuracy
  ±0.1mm
• Max. Working pressure
  200T
• 12 heating zones
• Gripper margin
  8-17mm
• Max. Feeding pile height (with plate)
  1350mm
• Max. Delivery pile height (with plate)
  1300mm
• Main motor power
  15kw
• Heating pipe power
  40kw
• Total machine power
  24KW
• Total machine power
  65.5kw
• Heating Zone
  10 zones
• Machine weight
  26.5t
• Air requirement
  0.6mpa,＞0.37m3/min
• Overall machine dimension
  7400×4600×2450mm
