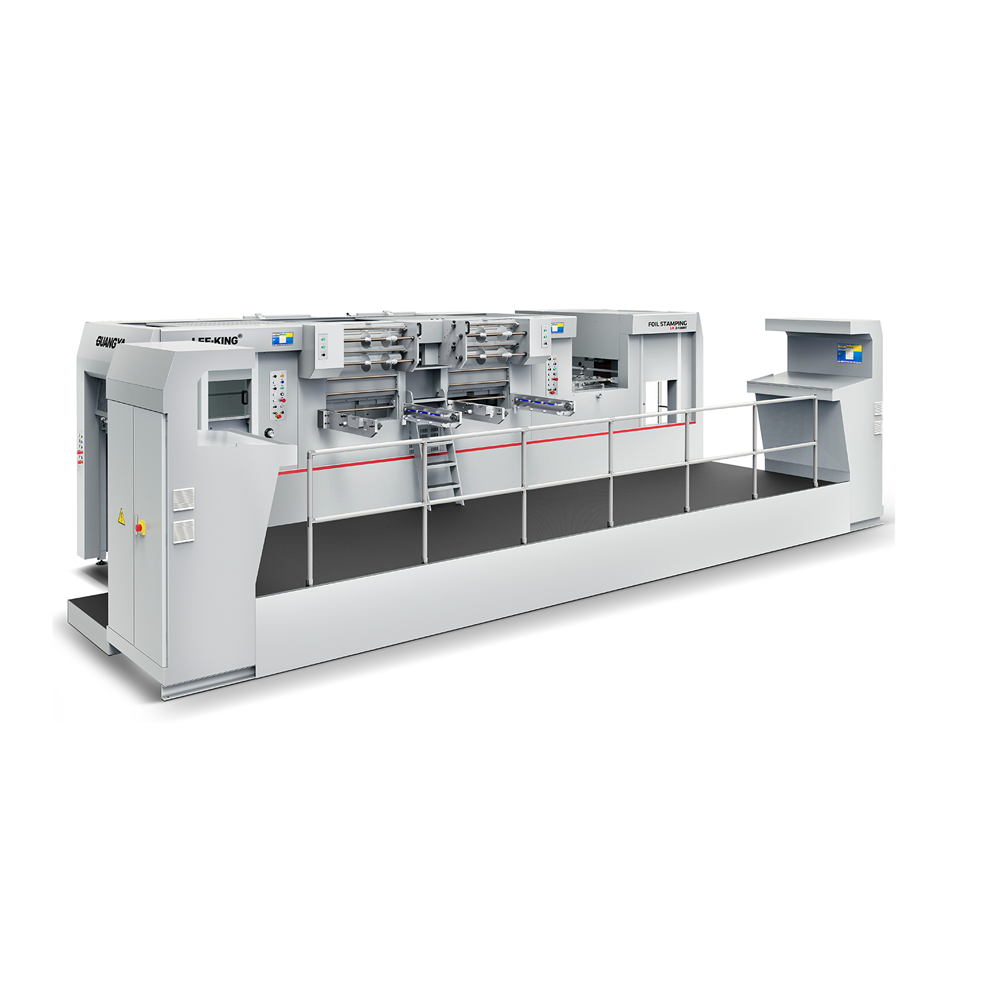

LK 2-106MTF-B Automatic Foil Stamping and Die Cutting Machine

LK 2-106MTF-B Automatic Foil Stamping and Die Cutting Machine

Overview Technical parameter Download

guangya

Technical parameter

Max. sheet size

760×1060mm

Min. sheet size

350×400mm

Max. die cutting size

746×1060mm

Max. stamping size

746×1060mm

Gripper margin

8-17mm

Cutting accuracy

±0.1mm

Paper range

80-2000g/m2(cardboard)

≤4mm(corrugated)

Max. working pressure

2.6 ~ 5.6 MN

Max. mechanical speed

7800s/h

Max. stamping speed

7200s/h

Press 1 foil pulling shafts

Longitudinal 3,

Transversal 2

Press 2 foil pulling shafts

Transversal 2, Longitudinal 2 (as option)

Press 1 Zones individually heated

12 heating zones

Press 2 Zones individually heated

12 heating zones

Max. foil diameter

250mm

Max. delivery pile height

1300mm

Max. feeding pile height

1500mm

Main motor power

40kw

Heating pipe power

48kw

Servo motor power

22.4kw

Total Machine power

105kw

Air requirement

40T

Machine weight

0.6Mpa,>0.37m3/min

Overall machine dimension

10484×5862×2888mm


Description

  1. Double-station design, one passing paper can be completed foil stamping, embossing debossing, die cutting any two processes and stripping reducing time and saving labor costs.
  2. Small space requirement, process flow time is short, greatly improve production efficiency, rapid completion of production targets.
  3. Compact design concept, fine assembly, good stability, safety, low noise.
  4. Worm gear, worm rod, crankshaft drive technology, die cutting high pressure, long service life.
  5. Imported high-precision cam indexing unit, die-cutting high precision, stable performance, stable running.
  6. European technology feeding head, sucking paper adjustable, stable, accurate, paper various applicability.
  7. Non-stop feeding, pre-coding paper pile and auxiliary paper delivery device, shorten the auxiliary time, improve work efficiency.
  8. Die-cutting chase and sole plate structure, user-friendly design, installing and adjusting mold quick and easy.
  9. Pneumatic locking chase device, frame fixed more secure, accurate, timesaving.
  10. Front lay automatic adjustment, side lay and paper delivering device fine adjustment, paper positioning convenient and accurate.
  11. Double sheets, crooked sheets, empty sheets photoelectric level control, to ensure accurate and stable paper, reduce waste.
  12. Modular electrical control design, the use of imported international famous brand electrical components to ensure accurate control, good reliability.
  13. Touch-screen man-machine interface, running real-time dynamic monitoring display, machine adjustment, troubleshooting convenient and quick.
  14. Circulation cooling oil supply system to ensure that the machine moving parts with good lubrication, durable.
  15. Regular quantitative automatic oil supply system to ensure that other moving parts of the machine fully lubricated, long service life.
  16. Chain and gripper bars are imported adjustable device to ensure that the machine die-cutting accuracy.
  17. The design of two separate console table, so that operator could be more convenient and efficient to control the system.
  18. Pre-heating system is more convenient, user-friendly, save time.
  19. Automatic pressure regulator system controlled by the servo, more accurate and convenient pressure adjusting.
  20. No paper automatically reducing pressure, to extend the mold life.
  21. Non-stop sampling function, improve production efficiency.



  • Max. sheet size
    1060×770mm
  • Min. sheet size
    450×370mm
  • Max.die cutting size
    1050×750mm
  • Max.stamping size
    1050×750mm
  • Inner chase size
    1100×790mm
  • Gripper margin
    8-17mm
  • Cutting accuracy
    ±0.1mm
  • Paper range
    90-2000g/m2(cardboard); 0.1-2mm(cardboard);≤4mm(corrugated)
  • Max. working pressure
    300T
  • Max. mechanical speed
    7500s/h
  • Max. stamping speed
    6500s/h
  • Press 1 foil pulling shafts
    Longitudinal 3,transversal 2
  • Press 2 foil pulling shafts
    Transversal 2
  • Press 1 Zones individually heated
    12 heating zones
  • Press 2 Zones individually heated
    12 heating zones
  • Max. foil diameter
    ¢250mm
  • Max. delivery pile height
    1250mm
  • Max. feeding pile height
    1350mm
  • Main motor power
    30kw
  • Heating pipe power
    48kw
  • Servo motor power
    24kw
  • Total Machine power
    105kw
  • Air requirement
    40T
  • Machine weight
    40T
  • Overall machine dimension
    9645×4145×2610mm
