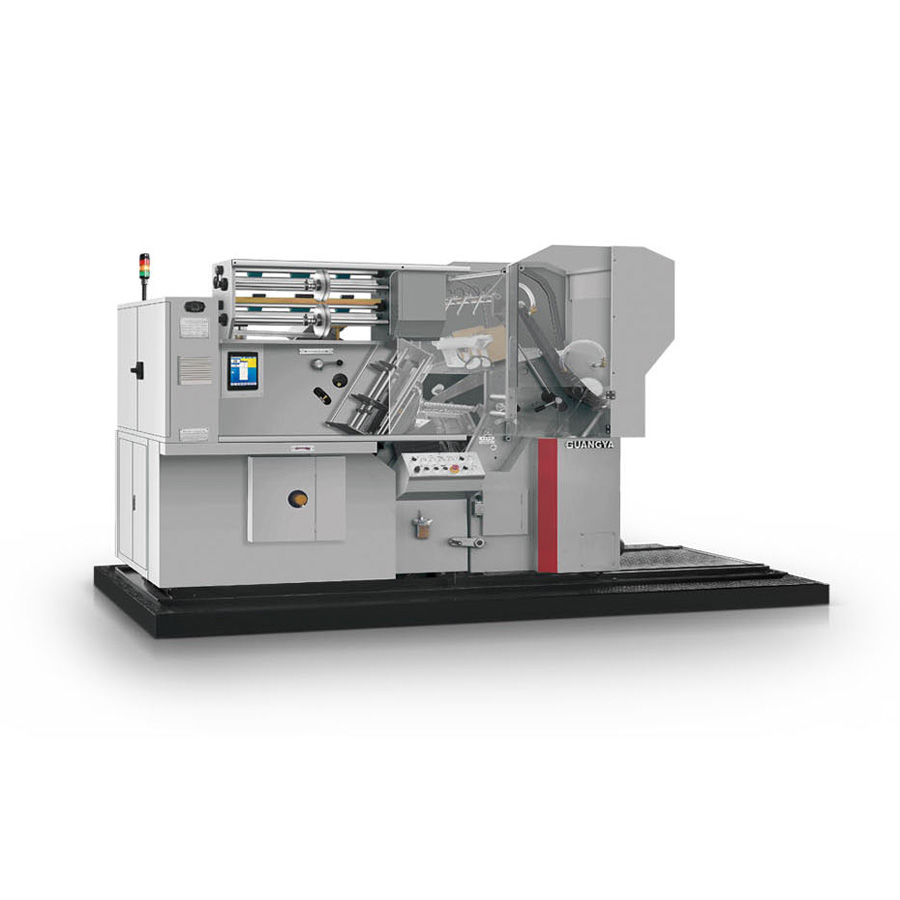

TL 780 Automatic Foil Stamping And Die Cutting Machine

TL 780 Automatic Foil Stamping And Die Cutting Machine

TL 780 Automatic Foil Stamping And Die Cutting Machine
Overview Technical parameter Download

PRODUCT FEATURES

In order to meet the various needs of the printing and packaging market, especially for those customers who have a lot short term but various kinds jobs, we designed the TL780 Automatic Hot Foil Stamping Machine, which is the newest equipment with the latest technical development.

Since it has quickly change-over system and smarter design, this machine can be easy to change from job to job or from foil stamping to die cutting, two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economic.

TL 780 Automatic Foil Stamping Machine adopts many advanced pneumatic and servo drive processing technologies at home and abroad. After strict assembly quality control, the operation is simple, safe and reliable.

It can die-cut, stamp and emboss on different printing and packaging products, such as paper above 90gsm, cardboard, corrugated paper below 4mm, adhesive paper, laminated paper, plastic card, PVC and so on.

Excellent adaptability and convenient operation make the machine work stably and safely. TL 780 Automatic Foil Stamping Machine will provide you with comfortable operation and a faster return on investment.


TECHNICAL PARAMETER

Technical Data

TL780

Suitable Material

Cardboard

100-2000 g/㎡

Plastic Sheet

Acoordingly

Sheet Size

Max. sheet size

780 X 560 mm

Min. sheet size

280 X 220 mm

Capabilities

Max. working speed

1500 S/H, paper < 150 G/M2
2500 S/H, paper > 150 G/M2

Max. working pressure

110 t

Working accuracy

± 0.1 mm

Foil Stamping

Adjustable temperature

20 - 200 °C

Heatable zones

4

Foil shafts

2 T (2L option)

Max. foil diameter

180 mm

Pile Height

Max. feeding height

800 mm

Max. delivery height

160 mm

Power Supply

Heating plates power rate

2 kW each zone

Total power rate

12 kW

Air supply

40 M3/min

Machine Dimension

Length

3700 mm

Width

1910 mm

Height

2200 mm

Weight

5.5 t

*L stands for longitudinal, H stands for transversal.


MAIN FEATURES

Feeding and Delivery Station

• The feeding height reach 800mm

• The feeding pile tray can be left up automatically

• Blowing function when paper is feeding, help to seprate materials

• The feeding pile table is moving electrically

• Missed sheet detector

Host Station

• Delivers accurate, adjustable impression for foil stamping, embossing and die cutting

• Air blast system helps separate foil from stock on critical jobs

• Micrometer adjustment on side guide and front guide

• Adjustable dwell on impression

• Honeycomb base is convenient for loading

• Two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economy.

• 4 heating zones with digital controlavoid interstitial temperature differences

• Independent temperature control, energy efficient

• 24 hours preheating function in temperature zone, save time

Control System

• Control system with touch screen HMI, PLC and servo system

• Imported electrical appliances, quality assurance

• Easy operation and visualized functions

• Production operation monitoring, data statistics function.

• Remote module, fast and convenient maintenance (optional)


*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
