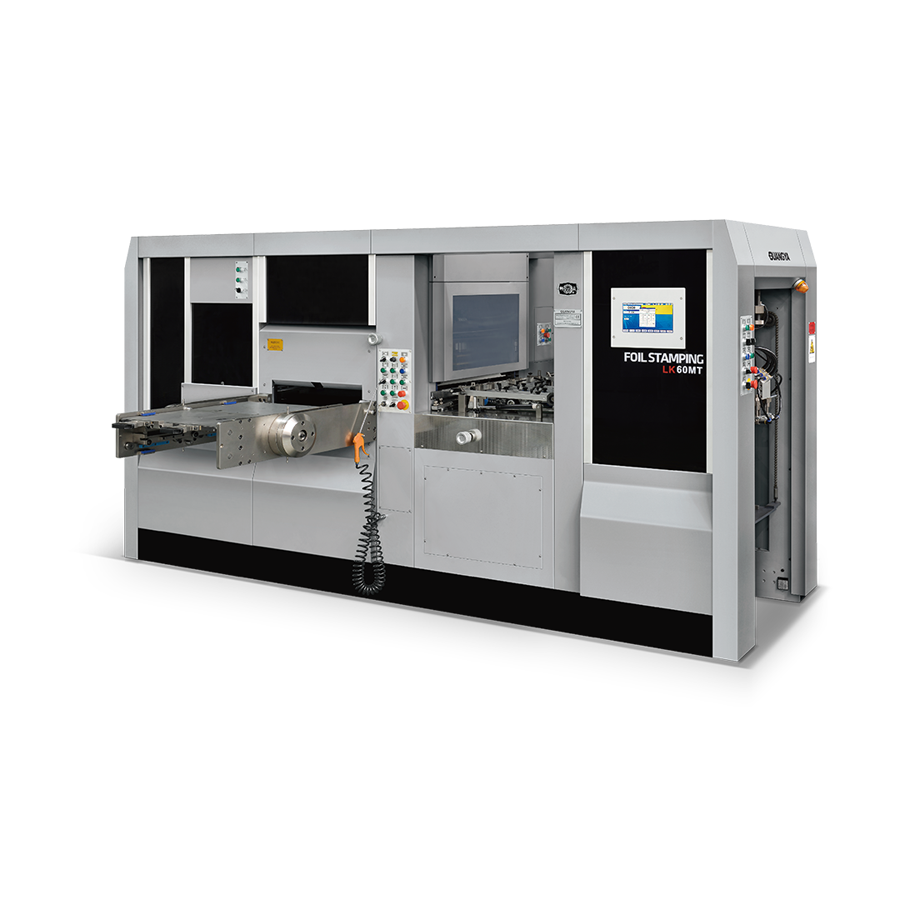

The LK60MT is Guangya's small format hot foil stamping and die cutting machine. This machine is great for producing short run die-cutting work, such as presentation folders and irregular shaped direct mail pieces. With a maximum format size of 450 × 600 mm (17.72 × 23.62 in), it can also hot foil and emboss folding cartons. Most of our customers use LK600/MT to deal with tag-related work,, which is also the famous point of this machine.

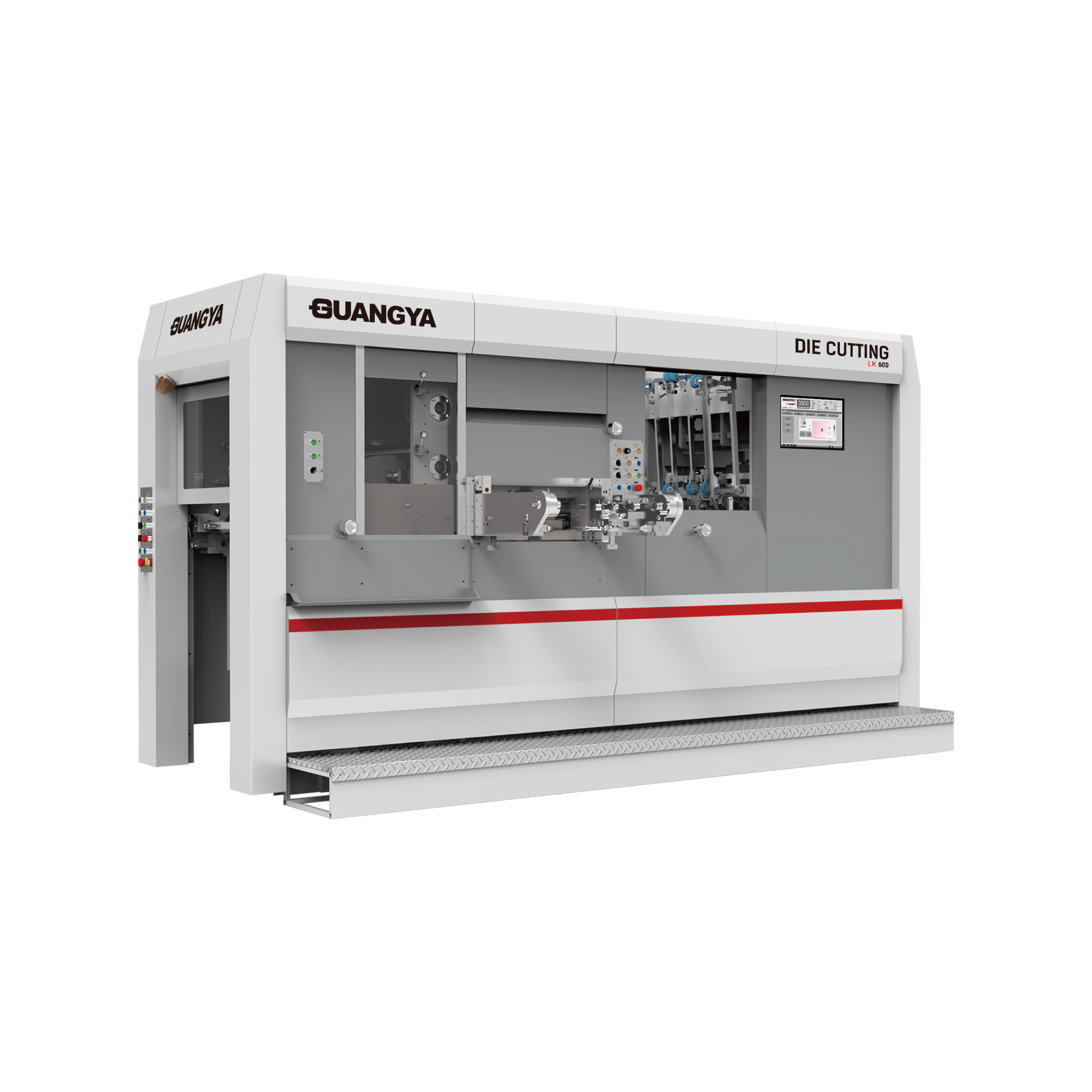

Due to the precise design and manufacure, the die cutting working speed of LK600/MT can reach 7000s/h, and even the foil stamping speed of it can reach 6500s/h, which is unmatched by other brands. In addition, if you purchased LK600 automatic die cutting machine at first, then you want to add foil stamping function on that machine, it is easily for us to change it even at your factory.
TECHNICAL PARAMETER
|
Technical Data |
LK60MT |
|
|
Suitable Material |
Cardboard |
90-2000 g/㎡ |
|
Corrugated |
≤4mm |
|
|
Plastic Sheet |
Acoordingly |
|
|
Sheet Size |
Max. sheet size |
600 X 450 mm |
|
Min. sheet size |
290 X 210 mm |
|
|
Max. die cutting size |
595 X 430 mm |
|
|
Max. foil stamping size |
595 X 430 mm |
|
|
Max. embossing size |
595 X 430 mm |
|
|
Chase size |
630 X450 mm |
|
|
Capabilities |
Max. die cutting speed |
7000 s/h |
|
Max. foil stamping speed |
6500 s/h |
|
|
Max. working pressure |
200 t |
|
|
Working accuracy |
± 0.1 mm |
|
|
Foil Stamping |
Adjustable temperature |
20 - 200 °C |
|
Heatable zones |
6 |
|
|
Foil shafts |
2L (2T option) |
|
|
Max. foil diameter |
220 mm |
|
|
Pile Height |
Max. feeding height |
1150 mm |
|
Max. delivery height |
950 mm |
|
|
Power Supply |
Main motor power rate |
7.5 kW |
|
Heating plates power rate |
2 kW each zone |
|
|
Total power rate |
24 kW |
|
|
Air supply |
0.6 Mpa, 0.37 M3/min |
|
|
Machine Dimension |
Length |
3690 mm |
|
Width |
1560 mm |
|
|
Height |
2100 mm |
|
|
Weight |
7.5 t |
|
|
*Pile height is with tray. |
||
|
*L stands for longitudinal, H stands for transversal. |
||
Feeder
• Non-stop High-Speed Feeder (optional)
• Feeder anti-collision protection
• Pile tray side guide can be adjust electrically
• Synchronous belt drive to ensure the accuracy of paper feeding
Feed Table
• Imported belts
• The belt is automatically tightened, no need to adjust
• Electrical front lays
• Push-pull integrated side guides moved electrically
• Imported Antistatic pattern stainless steel
• Ultrasonic double sheet detector (optional)
Host station
• Electrically pressure adjustment function
• Automatic pressure keeping and pressure reduction function
• Imported intermittent mechanism and synchronous belt drive to ensure running accuracy
Frame and Bottom Plate
• One button locking device for chase and bottom plate
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
Foil Stamping Station
• With 2 longitudinal foil shafts ( add 2 transverse optional)
• 6 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Hot stamping memory function, storing operation recipes, reduce makeready time
Foil Stepping Function
• Independently developed, exclusive system
• Automatic foil stepping calculation function, foil stepping optimisation function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically
Delivery
• Auxiliary delivery function
• Pneumatic non-stop sampling function
• Tape inseter
• Safety light curtain
Control System
Operating System
• 18.5-inch industrial control large-size true color touch capacitive screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical System
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
